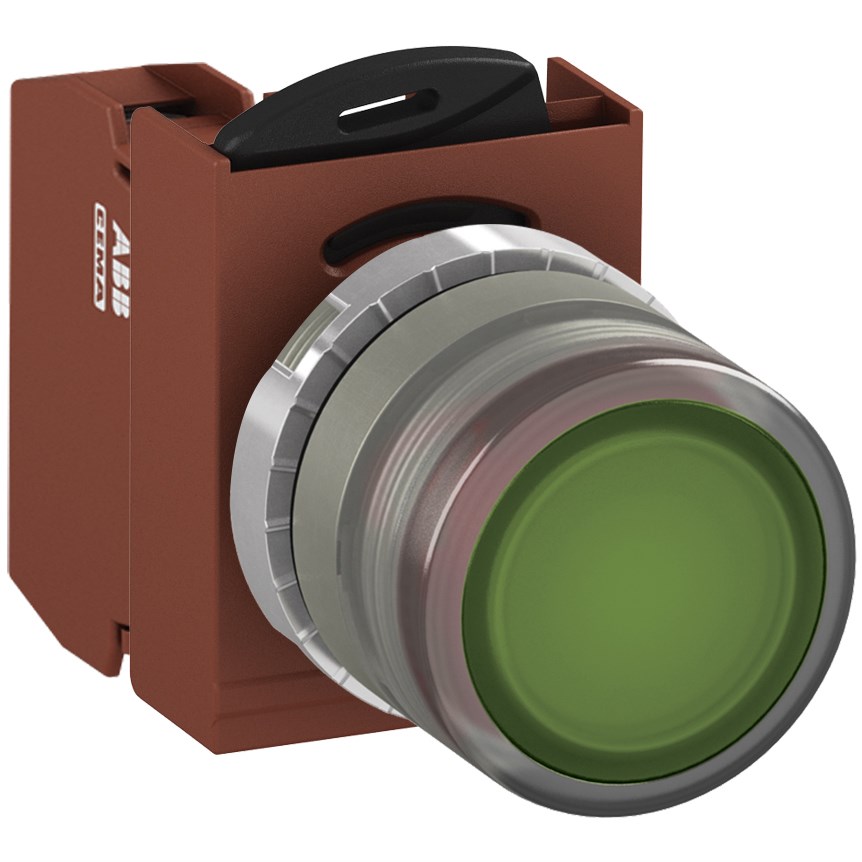

ABB MMPIFGOSP301 Illuminated Pushbutton Kit 22mm Flush Momentary Green 110VAC/DC 1NC Screw Power Supply

Product Code: MMPIFGOSP301

  • Rated Voltage: 110 VAC/DC, Illuminated
  • High protection: IP66 rating
  • Operates in -30 to 70°C environments
  • Green BA9S lamp, momentary function
  • Suitable for mining and heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
LED Block Rated Voltage 110 VAC
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Green
Connection Type Screw
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour Green
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
