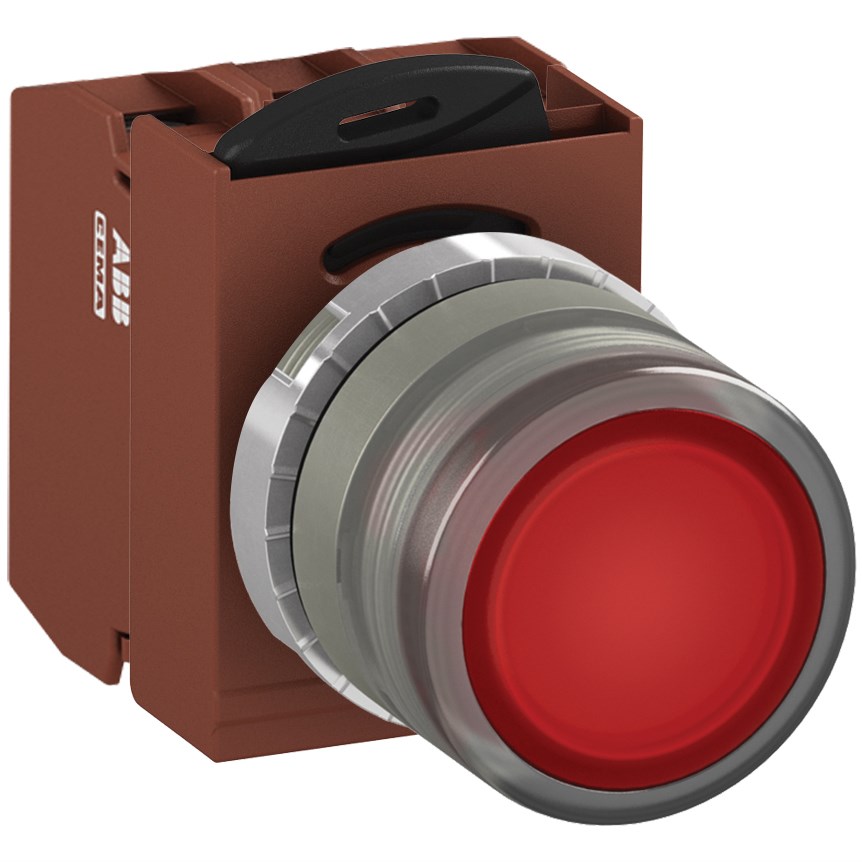

ABB MMPIFROSL302 Illuminated Pushbutton Kit 22mm Flush Momentary Red 110VAC/DC 2NC Screw LED Block

Product Code: MMPIFROSL302

  • Rated for 110 VAC/DC; suitable for various power systems
  • IP66 rating ensures robust protection against dust and water
  • Operates in extreme temps from -30 to 70°C
  • Features a durable metal bezel with flush actuator
  • Red LED illumination ideal for alert signals
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NC
LED Block Rated Voltage 110 VAC
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour Red
Connection Type Screw
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, LED Block and LED
Lamp Colour Red
Lamp Type LED
Light Blocks Type LED Block
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
