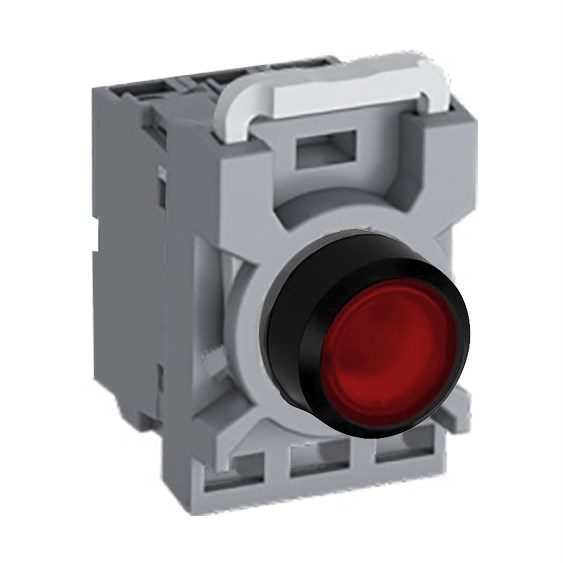

This industrial-grade illuminated pushbutton is designed for those who demand reliability and functionality in their control systems. Operating at a rated voltage of 24 VAC/DC, this unit provides a dependable solution for various applications. The pushbutton features an IP66 degree of protection on the front side, ensuring resilience against dust and powerful water jets, while the terminal offers IP20 protection.
Compliant with numerous standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, and others, this product meets rigorous international safety and performance criteria. Additionally, it holds UL 508 and CSA C22.2 No. 14 approvals, making it suitable for use in North American markets.
The device operates efficiently within an ambient temperature range of -25 to 70 degrees Celsius. Its rated insulation voltage stands at an impressive 690 V with a rated impulse withstand voltage of 6 kV. This ensures that the pushbutton can handle high-voltage environments safely.
Equipped with a contact configuration of one normally open (1NO) and one normally closed (1NC), it offers versatile switching options for your circuits. The actuator type is flush-mounted with a standard diameter of 22 mm, making it compatible with widely-used cutout sizes.
For enhanced visibility in low-light conditions or when status indication is required, the pushbutton includes a red LED lamp. This momentary function button allows users to engage or disengage circuits seamlessly during operation.
Constructed from durable plastic bezel material, this product promises longevity even under demanding conditions. The package includes not just the operator but also a contact block holder and LED block to facilitate easy installation and maintenance.
Overall, this illuminated pushbutton combines robust design with practical features tailored for industrial settings where precision control is paramount without compromising on safety or compliance standards.
