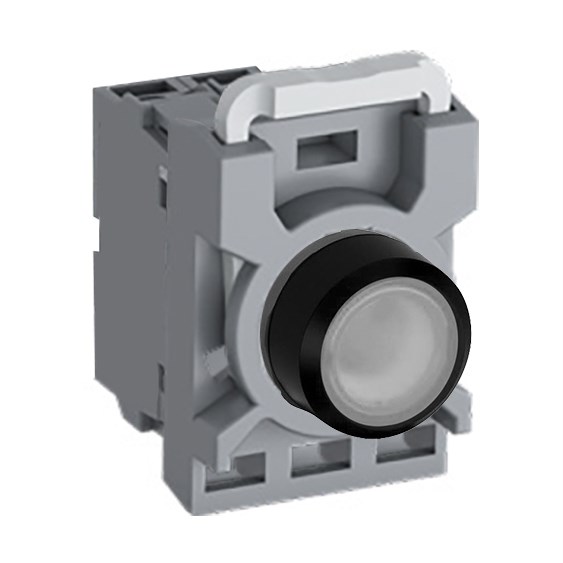

ABB MPPIFWO310 Illuminated Pushbutton Kit 22mm Flush Momentary White 220VDC 1NO

Product Code: MPPIFWO310

  • Illuminated pushbutton with white LED
  • Flush actuator, 22mm dia. cutout
  • IP66 front protection rating
  • Operates in -25 to 70°C range
  • Includes operator & contact block
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
Rated Voltage DC (V) 220
LED Block Rated Voltage 220 VDC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Colour White
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour White
Lamp Type LED
LED Colour White
Mode of Operation Momentary
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 220 VDC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Pushbutton Kit is a white flush momentary switch with an integrated white LED. It operates at 220V DC and has a 1NO contact configuration. This kit is part of a modular plastic range and features an IP66 front rating for protection against dust and water, while the terminals have an IP20 rating.
