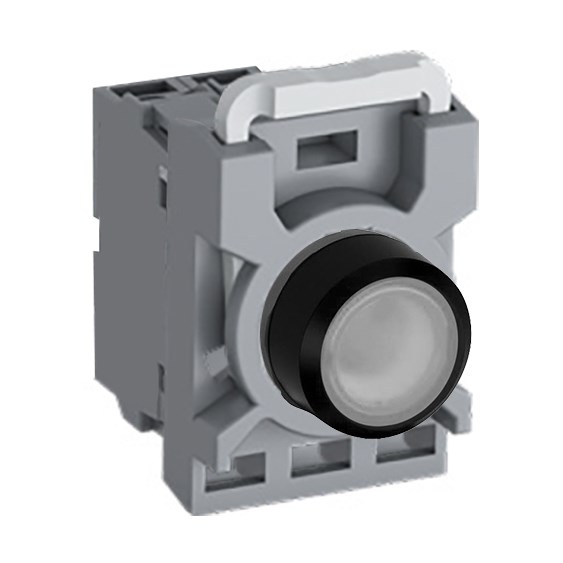

ABB MPPIFWO410 Illuminated Pushbutton Kit 22mm Flush Momentary White 230VAC/DC 1NO

Product Code: MPPIFWO410

  • Illuminated pushbutton with LED lamp
  • IP66 front protection for harsh environments
  • Operates at 230 VAC/DC, 10 A thermal current
  • Flush actuator with white illumination
  • Suitable for cutout size of 22 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
Rated Frequency (Hz) 50/60
Rated Voltage AC (V) 230
LED Block Rated Voltage 230 VAC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Colour White
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour White
Lamp Type LED
LED Colour White
Mode of Operation Momentary
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Pushbutton White Momentary Flush is a modular plastic range kit that includes an operator, contact blocks, a contact block holder, and an LED block. It features 1NO contacts and operates at 230VAC.
