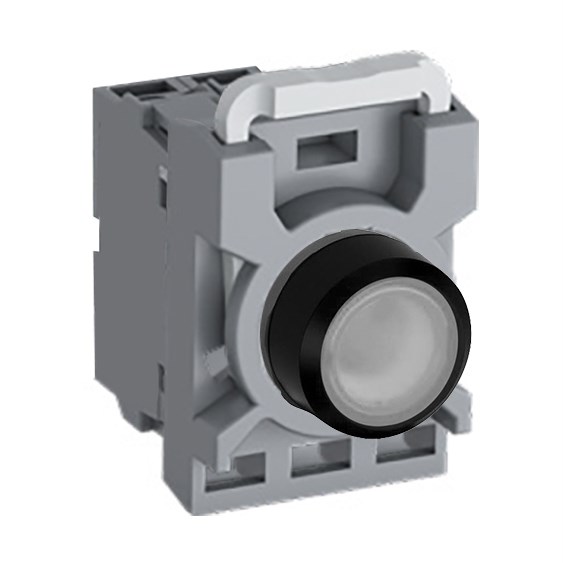

ABB MPPIFWO101 Illuminated Pushbutton Kit 22mm Flush Momentary White 24VAC/DC 1NC

Product Code: MPPIFWO101

  • Operates on 24 VAC/DC with white LED illumination
  • IP66 front protection ensures durability
  • Flush actuator with 22 mm diameter
  • Momentary function with 1NC contact config
  • Includes operator, contact block & holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
LED Block Rated Voltage 24 VAC/DC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Colour White
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour White
Lamp Type LED
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 24 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14
