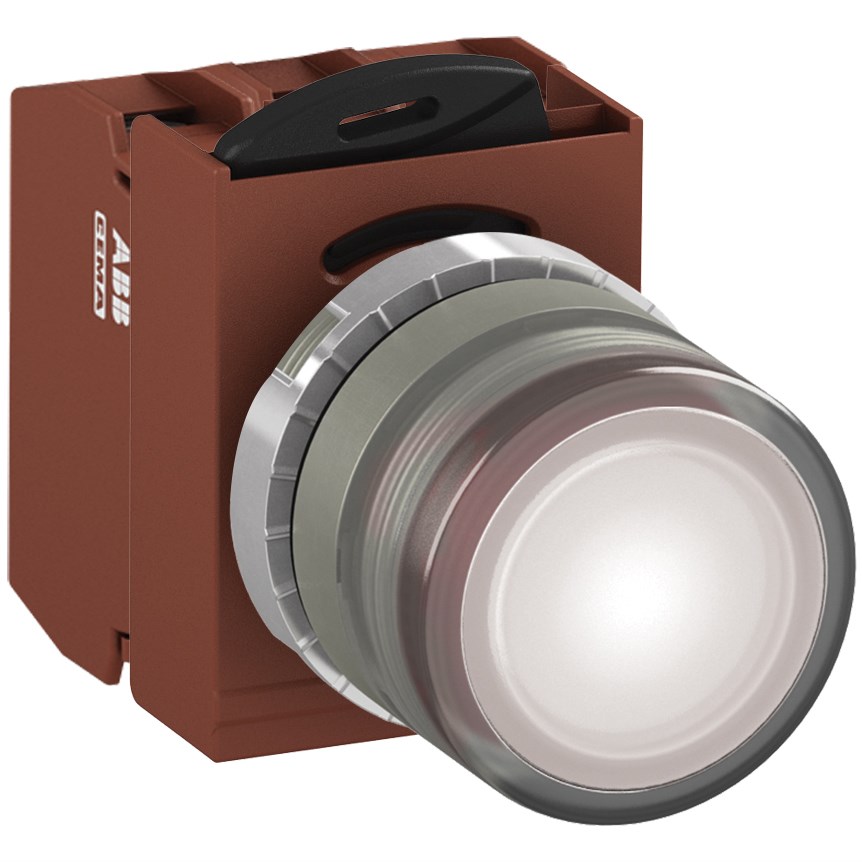

ABB MMPIFWOFP002 Illuminated Pushbutton Kit 22mm Flush Momentary White 6VAC/DC 2NC Faston Power Supply

Product Code: MMPIFWOFP002

  • Illuminated flush actuator, 22 mm diameter
  • IP66 protection for harsh environments
  • Operates in -30 to 70°C temperature range
  • Suitable for mining and heavy industry use
  • Includes operator, contact block, and lamp
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NC
LED Block Rated Voltage 6 VAC/DC
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Colour White
Connection Type Faston
Contact Configuration 2NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Maintained Accessories, Power Supply (Lamp Block) and Lamp
Lamp Colour White
Lamp Type BA9S
Light Blocks Type Power Supply
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 6 VAC/DC
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
