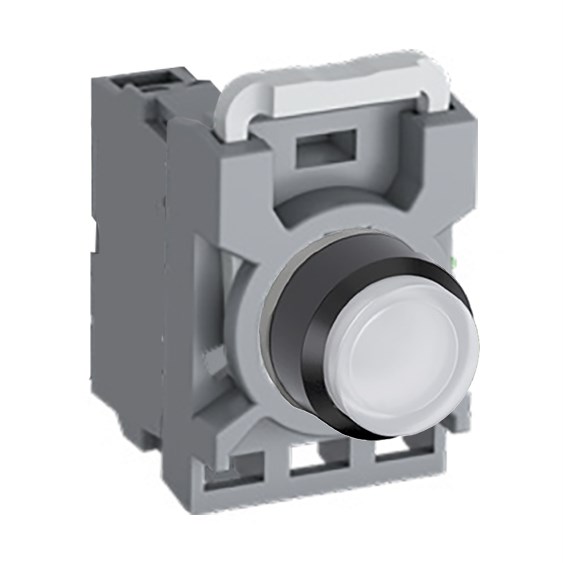

ABB MPPNECA10 Non-Illuminated Pushbutton Kit 22mm Extended Maintained Clear 1NO

Product Code: MPPNECA10

  • Non-illuminated pushbutton with IP66 front protection
  • Operates in temperatures from -25 to 70°C
  • Extended actuator with a 22 mm diameter
  • Maintained function with a clear button color
  • Includes operator, contact block, and holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
Rated Frequency (Hz) 50/60
LED Block Rated Voltage Not Applicable
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Clear
Colour Clear
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Maintained
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Mode of Operation Maintained
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This Non-Illuminated Pushbutton Clear Maintained Extended kit includes a Modular Plastic Range operator, contact blocks, and a contact block holder. It features 1NO Contacts for easy operation.
