Specifications

Contacts	2NC
LED Block Rated Voltage	Not Applicable
Bezel Material	Plastic

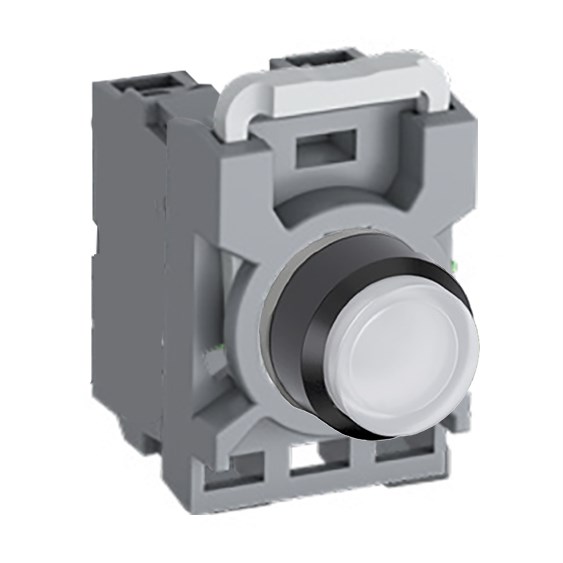

Product Type	Pushbutton Kit
Brand	ABB
Actuator Type	Extended
Ambient Temperature	-25 to 70 deg C
Bezel Material	Plastic
Button Colour	Clear
Colour	Clear
Contact Configuration	2NC
Cutout Size	22 mm
Degree of Protection	IP66 Front, IP20 Terminal
Diameter	22 mm
Function	Maintained
Illumination	Non-Illuminated
Includes	Operator, Contact Block and Contact Block Holder
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14
