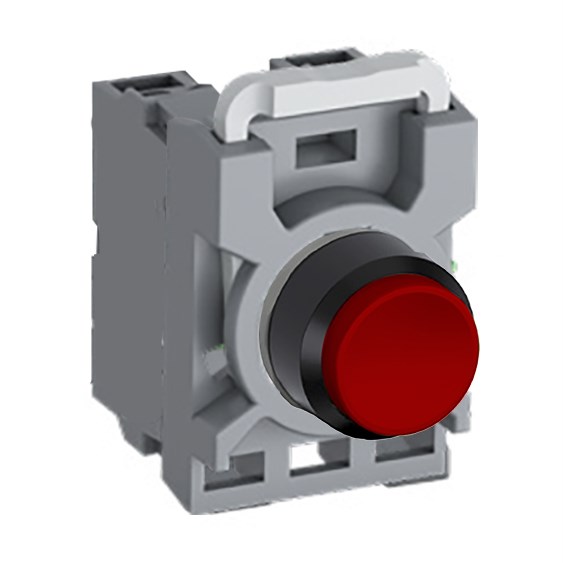

ABB MPPNERA11 Non-Illuminated Pushbutton Kit 22mm Extended Maintained Red 1NO+1NC

Product Code: MPPNERA11

  • Non-illuminated, red button with extended actuator
  • IP66 front protection for harsh environments
  • Operates in temperatures from -25 to 70°C
  • Rated insulation voltage of 690V, withstands 6kV impulses
  • Includes operator, contact block & holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
LED Block Rated Voltage Not Applicable
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Red
Colour Red
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Maintained
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14
