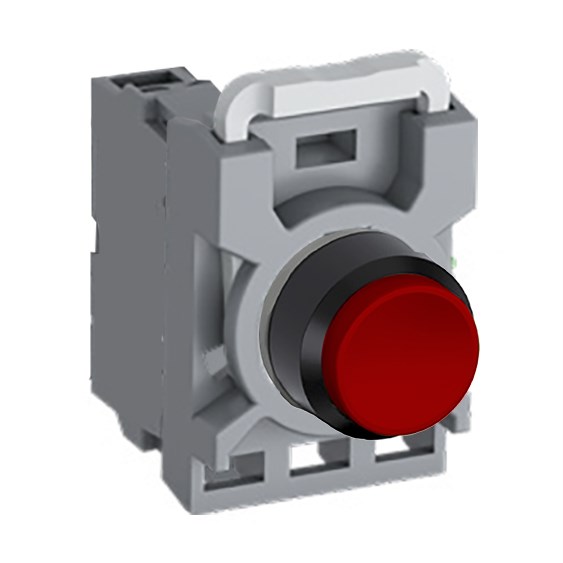

ABB MPPNERA10 Non-Illuminated Pushbutton Kit 22mm Extended Maintained Red 1NO

Product Code: MPPNERA10

  • Non-Illum pushbutton, IP66 front rating
  • Red button with extended actuator
  • 1NO contact config, maintained function
  • Operates in -25 to 70°C enviro
  • Rated for 690V insulation voltage
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
Rated Frequency (Hz) 50/60
LED Block Rated Voltage Not Applicable
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Extended
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Red
Colour Red
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Maintained
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Mode of Operation Maintained
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This Non-Illuminated Pushbutton Red Maintained Extended kit includes a modular plastic range with an operator, contact blocks, and a contact block holder. It features 1NO contacts.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
