Specifications

Contacts	2NO
LED Block Rated Voltage	Not Applicable
Bezel Material	Metal

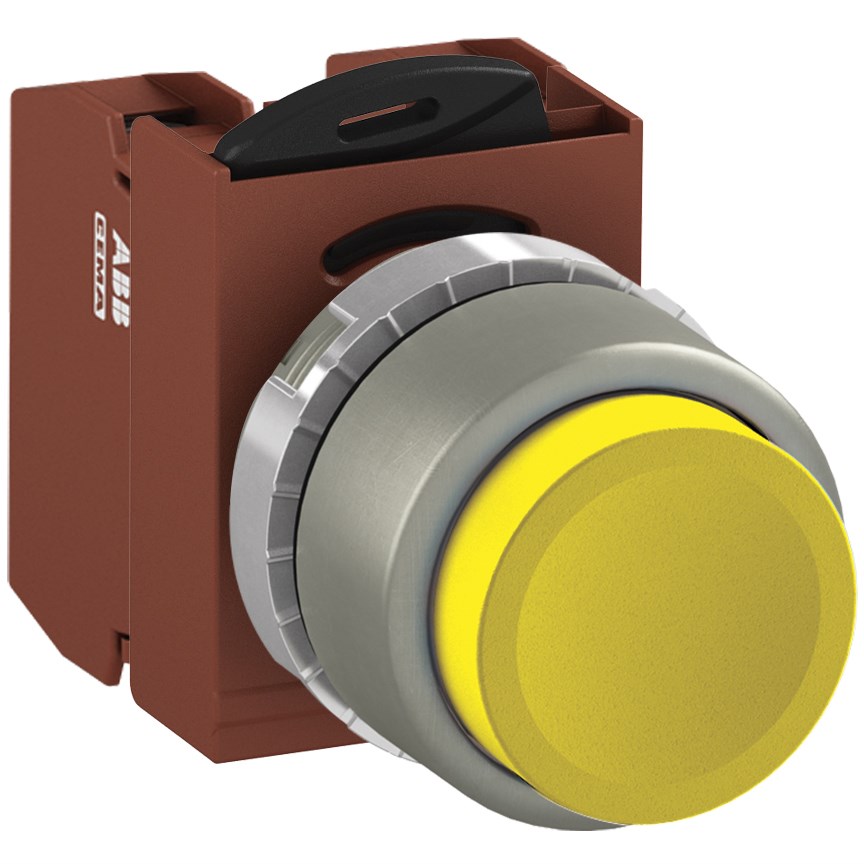

Product Type	Pushbutton Kit
Brand	ABB
Actuator Type	Extended
Ambient Temperature	-30 to 70 deg C
Application	For mining, construction and heavy industry applications
Bezel Material	Metal
Button Colour	Yellow
Colour	Yellow
Connection Type	Screw
Contact Configuration	2NO
Cutout Size	22 mm
Degree of Protection	IP66
Diameter	22 mm
Function	Momentary
Illumination	Non-Illuminated
Light Blocks Type	Not Applicable
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Standards and Approvals	EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
