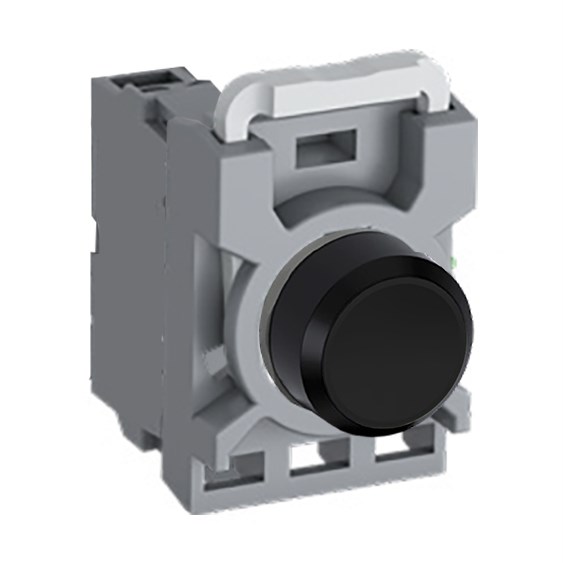

ABB MPPNFBA10 Non-Illuminated Pushbutton Kit 22mm Flush Maintained Black 1NO

Product Code: MPPNFBA10

  • Non-illuminated, flush actuator design
  • IP66 front protection for durability
  • Operates in -25 to 70°C temperature range
  • 22 mm cutout size with black button
  • Includes operator & contact block holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
Rated Frequency (Hz) 50/60
LED Block Rated Voltage Not Applicable
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -25 to 70 deg C
Bezel Material Plastic
Button Colour Black
Colour Black
Contact Configuration 1NO
Cutout Size 22 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 22 mm
Function Maintained
Illumination Non-Illuminated
Includes Operator, Contact Block and Contact Block Holder
Mode of Operation Maintained
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This Non-Illuminated Pushbutton is a Black Maintained Flush type with 1 Normally Open (NO) contact. It is part of a Modular Plastic Range kit and includes an operator, contact blocks, and a contact block holder.
