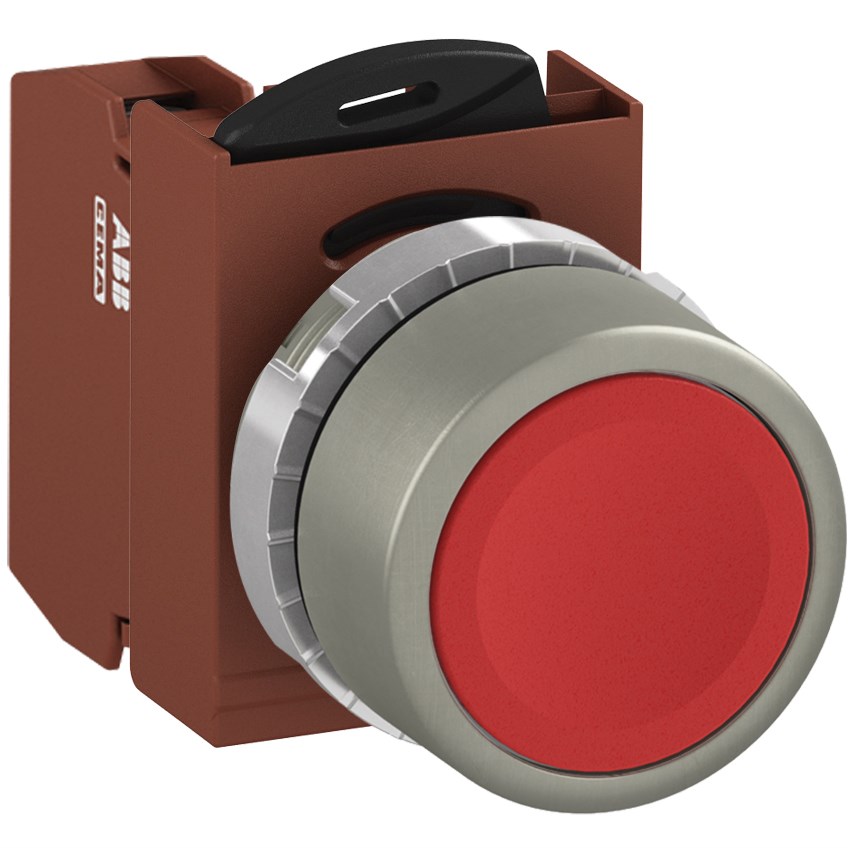

ABB MMPNFRAF01 Non-Illuminated Pushbutton Kit 22mm Flush Maintained Red 1NC Faston

Product Code: MMPNFRAF01

  • IP66 rated for dust and water protection
  • Operates in -30 to 70°C environments
  • Faston connection type for easy wiring
  • Suitable for mining and heavy industry use
  • Flush actuator with a 22 mm cutout size
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NC
LED Block Rated Voltage Not Applicable
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Button Colour Red
Colour Red
Connection Type Faston
Contact Configuration 1NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Maintained
Illumination Non-Illuminated
Light Blocks Type Not Applicable
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
