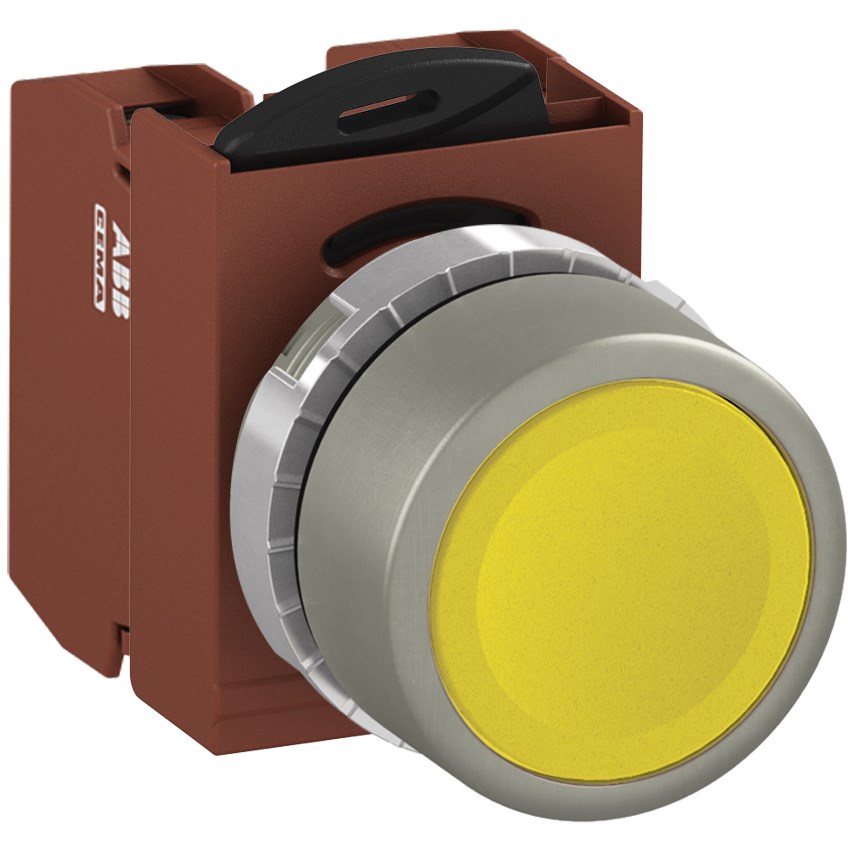

ABB MMPNFYOS11 Non-Illuminated Pushbutton Kit 22mm Flush Momentary Yellow 1NO+1NC Screw

Product Code: MMPNFYOS11

  • Non-illuminated flush actuator design
  • IP66 protection for harsh environments
  • Operates in -30 to 70°C temperature range
  • Supports up to 690V insulation voltage
  • Suitable for mining and heavy industry
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO + 1NC
LED Block Rated Voltage Not Applicable
Bezel Material Metal
Product Type Pushbutton Kit
Brand ABB
Actuator Type Flush
Ambient Temperature -30 to 70 deg C
Application For mining, construction and heavy industry applications
Bezel Material Metal
Button Colour Yellow
Colour Yellow
Connection Type Screw
Contact Configuration 1NO+1NC
Cutout Size 22 mm
Degree of Protection IP66
Diameter 22 mm
Function Momentary
Illumination Non-Illuminated
Light Blocks Type Not Applicable
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Standards and Approvals EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508, CSA C22.2 No. 14
