Specifications

Dimensions (mm)	29W x 29H x 33D
Operational Temperature Range (°C)	-25 to 70
Pollution Degree	3
Weight (kg)	0.016
Storage Temperature (°C)	-40 to +85
Storage Temperature Range (°C)	-40 to 85
Enclosure Type (NEMA)	Type1, Type12, Type13, Type3R, Type4, Type4X

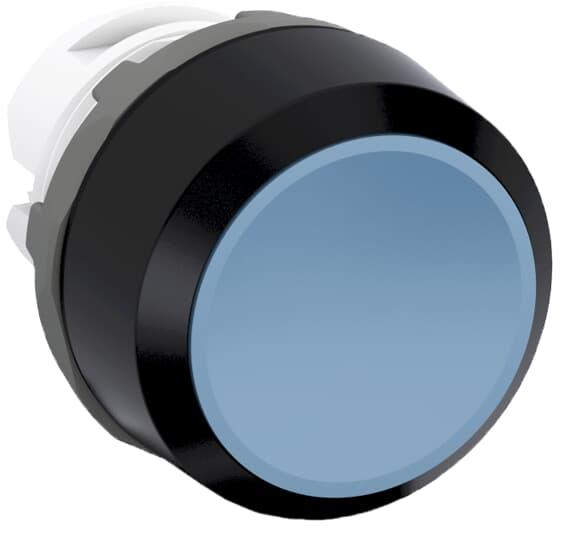

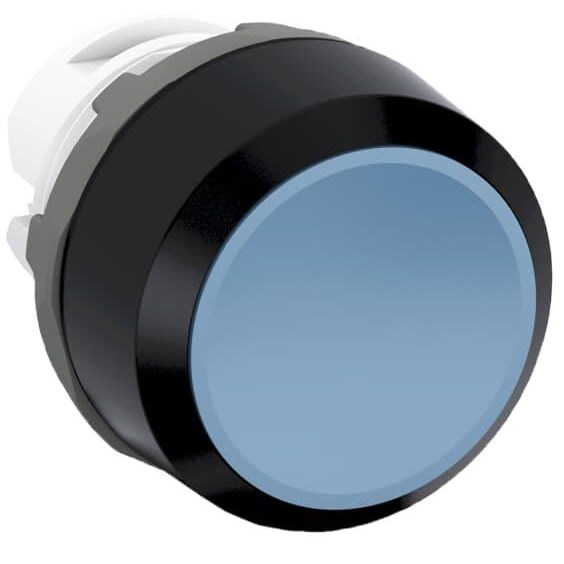

Product Type	Pushbutton
Brand	ABB
Actuator Type	Flush
Bezel Colour	Black
Bezel Material	Plastic
Button Colour	Blue
Colour	Blue
Degree of Protection	IP66 Front
Depth	33 mm
Enclosure Type	NEMA 1, 12, 13, 3R, 4, 4X
Function	Momentary
Height	29 mm
Illumination	Non-Illuminated
Includes	Holder and Contact Block are not included
Material	Bezel: Plastic
Mechanical Life	2 million Operations
Mode of Operation	Momentary
Operational Temperature	-25 to 70 deg C
Range	Modular Plastic
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Standards and Approvals	IEC / EN 60947-1, IEC / EN 60947-5-1, IEC / EN 60947-5-5, IEC / EN 60073, IEC / EN 60529
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Weight	0.011 kg
Width	29 mm
