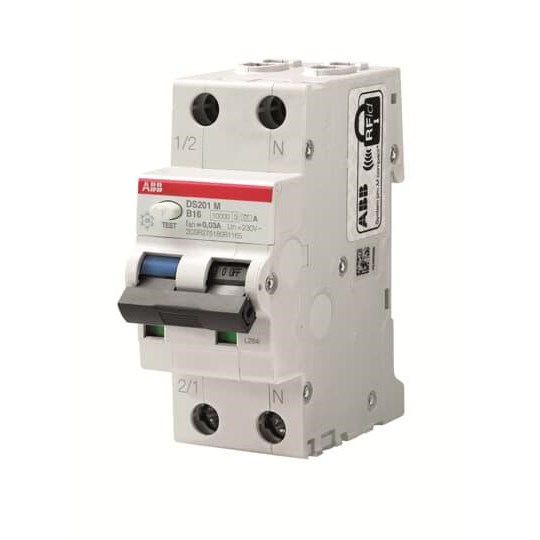

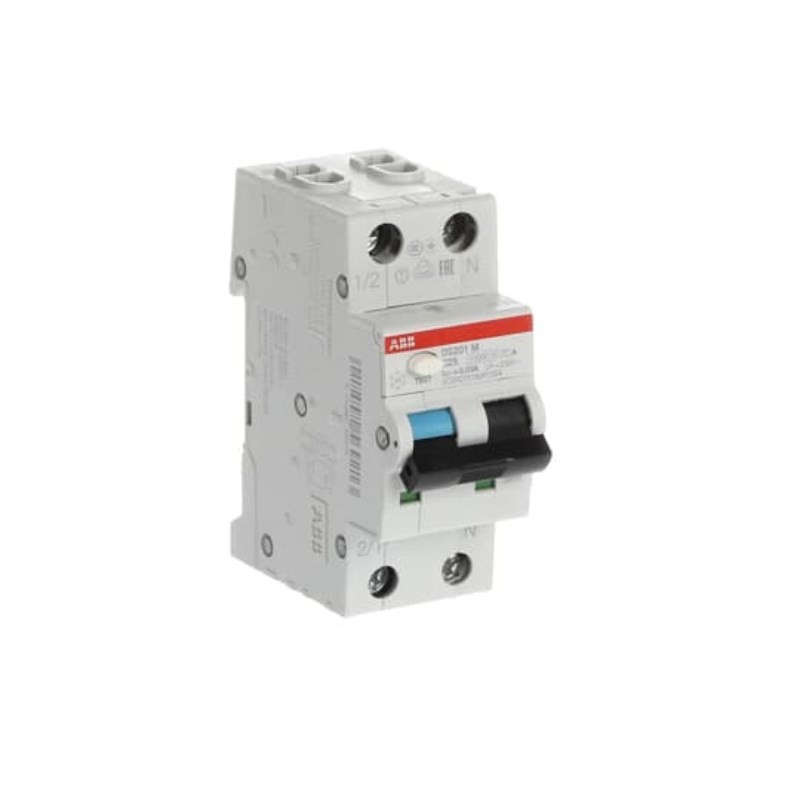

ABB DS201MC32A30 Residual Current Circuit Breaker with Overcurrent Protection 10kA 2-P 30mA 32A C-Curve TypeA IP40

Product Code: DS201MC32A30

  • 32 A RCBO with 15 kA breaking capacity
  • IP20/IP40 protection for safety
  • DIN Rail mounting, easy installation
  • Operates in -25 to 55°C temperature range
  • Red/Green contact position indication
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Poles 1P+N
Power Loss (W) 6.4
Rated Conditional Short-Circuit Current - Inc (kA) 15
Pollution Degree 2
Rated Current (A) 32
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage AC (V) 500
Rated Short-Circuit Capacity - Icn (kA) 10
Rated Operational Voltage AC (V) 230/240
Rated Residual Current (mA) 30
Breaking Capacity 230V AC - Icu (kA) 15
Rated Voltage AC (V) 230
Test Voltage (kV) 0.17-0.264
Type of Residual Current A
Poles 1P+N
Breaking Capacity (kA) 15 @230 V AC
Current Rating (A) 32
Family DS201M
AC Voltage (V) 230/240
Icn-Rated Short Circuit Capacity (kA) 10
Inc-Rated Conditional Short Circuit Capacity (kA) 15
Impulse Withstand Voltage (kV/1.2µS) 4
Product Type Residual Current Circuit Breaker with Overcurrent Protection
Brand ABB
Series DS201M
Ambient Temperature -25 to 55 deg C
Application Commercial and Industrial
Breaking Capacity 15 kA
Connecting Capacity Busbar 10-10 sq-mm, Stranded 0.75-25 sq-mm, Flexible with Ferrule 0.75-16 sq-mm, Flexible 0.75-16 sq-mm
Contact Position Indication Red ON, Green OFF
Curve Type C
Degree of Pollution IP2
Degree of Protection IP20/IP40
Depth 69 mm
Dielectric Test Voltage 2 kV
Electrical Durability 10000 Cycles
Energy Limiting Class 3
Fault Detection Blue Flag on Toggle
Height 85 mm
Housing Colour RAL 7035 Grey
Housing Material Insulation Group I - II, RAL 7035
Mounting Type DIN Rail
Number of Poles 2
Operating Characteristic Instantaneous
Overvoltage Category III
Power Loss 9.9 W
Power Supply Connection Arbitrary
Rated Current 32 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 500 V
Rated Short Circuit Current 30 mA
Rated Voltage 240 V
Residual Current Type Type A
Short Circuit Capacity 10 kA
Standards and Approvals IEC/EN 61009-1, IEC/EN 61009-2-1
Terminal Type Screw Clamp
Test Voltage 170-264 V
Tightening Torque 2.8 N-m
Trip Curve C Curve
Weight 200 g
Width 35 mm
Wire Stripping Length 12 mm

Description

The ABB RCBO is a combined MCB/RCD that offers protection against short circuit, thermal overload, and earth leakage. It has a breaking capacity of 10kA at 230VAC and is designed for commercial and industrial use. This RCBO is 1P+N rated with a current rating of 32A and features a C curve Type A trip characteristic. With a sensitivity of 30mA, it provides reliable protection in various applications. The ABB RCBO is two modules wide, making it easy to install and integrate into electrical systems.
