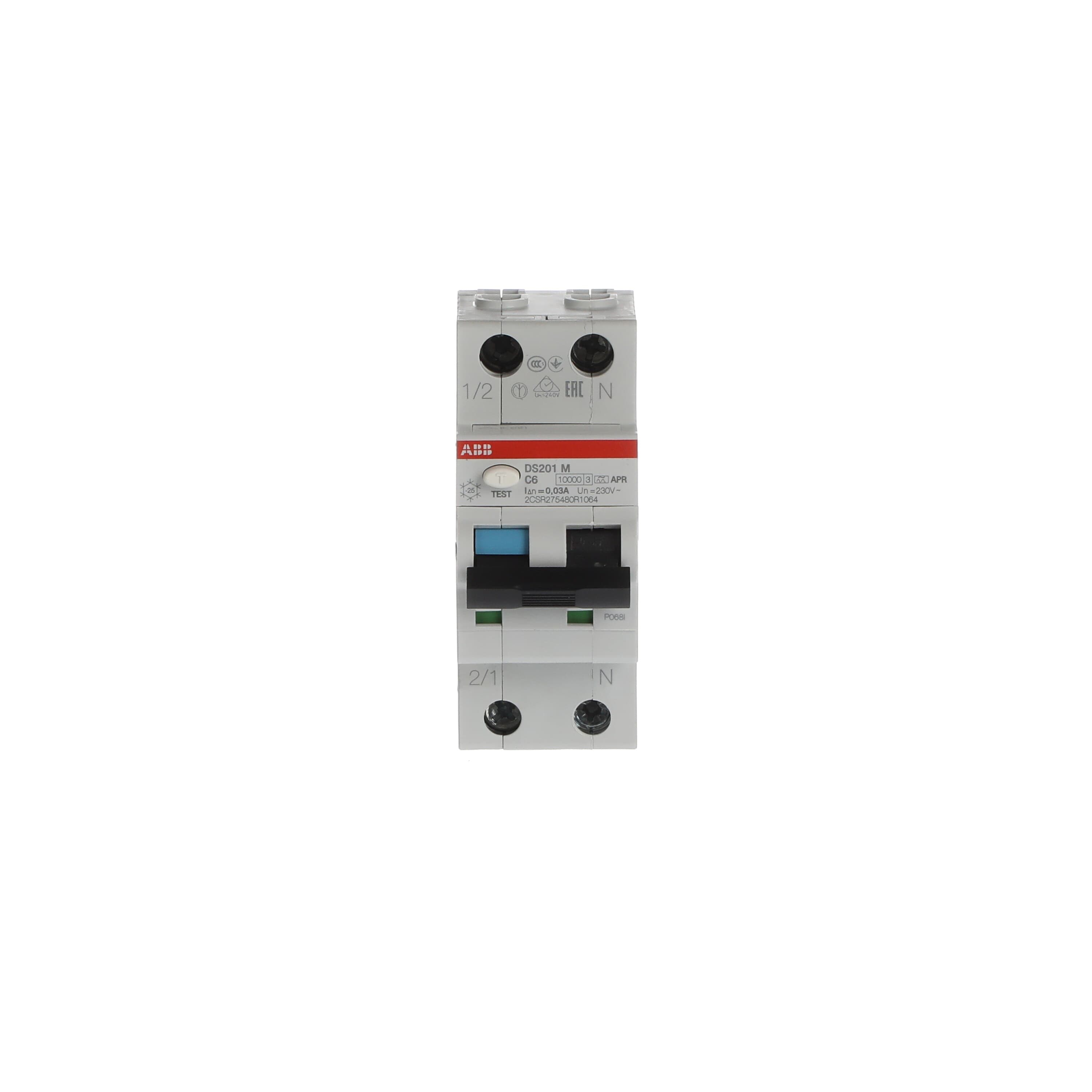

ABB DS201MC6APR30 Residual Current Circuit Breaker with Overcurrent Protection 10kA 2-P 30mA 6A C-Curve TypeA IP40

Product Code: DS201MC6APR30

  • Rated current of 6 A for efficient protection
  • High breaking capacity of 15 kA
  • Compact size: 35mm width, 85mm height
  • IP20/IP40 protection for versatile use
  • Easy DIN rail mounting system
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 to 55
Dimensions (mm) 35W x 85H x 69L
No. of Poles 2
Power Loss (W) Average per Pole 1.3 Phase Pole 2.4 Neutral Pole 0.2 Total 2.6
Rated Current (A) 6
Rated Frequency (Hz) 50 - 60
Rated Insulation Voltage (V) 500
Rated Impulse Withstand Voltage (kV) 4
Rated Short-Circuit Capacity - Icn (kA) 10
Rated Residual Current (mA) 30
Type of Residual Current Type A
Weight (kg) 0.2
Tightening Torque (Nm) 2.8
Rated Operational Voltage (V) 240
Standards IEC/EN 61009-1, IEC/EN 61009-2-1
No. of Protected Poles 1
Wire Stripping Length (mm) 12
Product Type Residual Current Circuit Breaker with Overcurrent Protection
Brand ABB
Ambient Temperature -25 to 55 deg C
Breaking Capacity 15 kA
Cable Cross Section 0.75-25 sq-mm 1-Solid Core , 0.75-16 sq-mm 4-Multi-Wired
Connecting Capacity Busbar 10-10 sq-mm, Stranded 0.75-25 sq-mm, Flexible with Ferrule 0.75-16 sq-mm, Flexible 0.75-16 sq-mm
Contact Position Indication Red ON, Green OFF
Curve Type C
Degree of Pollution IP2
Degree of Protection IP20/IP40
Depth 69 mm
Dielectric Test Voltage 2 kV
Earthing Switch Type Undelayed
Electrical Durability 10000 Cycles
Energy Limiting Class 3
Fault Detection Blue Flag on Toggle
Height 85 mm
Housing Colour RAL 7035 Grey
Mounting Type DIN Rail
Number of Poles 2
Operating Characteristic Instantaneous
Overvoltage Category III
Power Loss 2.6 W
Power Supply Connection Arbitrary
Rated Current 6 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 500 V
Rated Short Circuit Current 30 mA
Rated Voltage 240 V
Residual Current Type Type A
Short Circuit Capacity 10 kA
Standards and Approvals IEC/EN 61009-1, IEC/EN 61009-2-1
Terminal Type Screw Clamp
Test Voltage 170-264 V
Tightening Torque 2.8 N-m
Trip Curve C
Weight 200 g
Width 35 mm
Wire Stripping Length 12 mm
