Specifications

No. of Poles	3+N
Power Loss (W)	6.5
Rated Current (A)	25
Rated Frequency (Hz)	50 - 60
Rated Insulation Voltage (V)	500
Rated Impulse Withstand Voltage (kV)	4
Rated Short-Circuit Capacity - Icn (kA)	10
Rated Residual Current (mA)	100
Ambient Temperature Range (°C)	-5 to 55
Dimensions (mm)	53.4W x 117.5H x 71.6L
Type of Residual Current	Type A
Weight (kg)	0.549
Rated Operational Voltage (V)	415
No. of Protected Poles	3
Standards	IEC 61009-1 IEC 61009-2-2 AS/NZS 61009-1

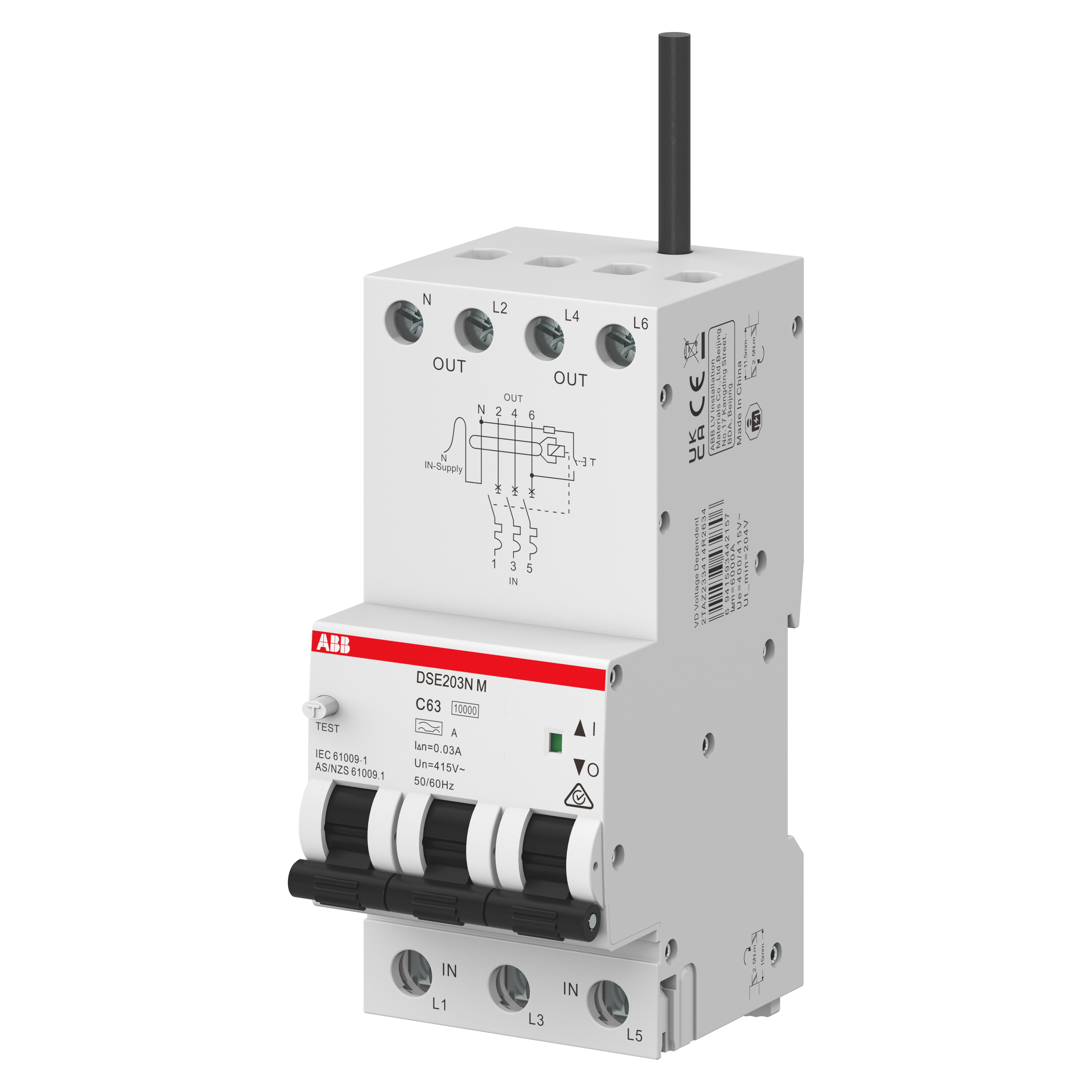

Product Type	Residual Current Circuit Breaker with Overcurrent Protection
Brand	ABB
Ambient Temperature	-5 to 55 deg C
Cable Cross Section	1-25 sq-mm 1-Solid-Core, 1-16 sq-mm 4-Multi-Wired
Connecting Capacity	Busbar 10 sq-mm, Rigid 1-25 sq-mm, Flexible 1-16 sq-mm
Curve Type	C
Degree of Pollution	IP2
Degree of Protection	IP20
Depth	71.6 mm
Earthing Switch Type	Undelayed
Electrical Durability	10000 Cycles
Height	117.5 mm
Number of Poles	3P+N
Operating Characteristic	Instantaneous
Overvoltage Category	III
Power Loss	12.81 W
Power Supply Connection	Bottom
Rated Current	25 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	500 V
Rated Short Circuit Current	0.1 A
Rated Voltage	400/415 VAC
Residual Current Type	Type A
Short Circuit Capacity	10 kA
Standards and Approvals	IEC 61009-1, IEC 61009-2-2, AS/NZS 61009-1
Trip Curve	D
Weight	0.549 kg
Width	53.4 mm
