Specifications

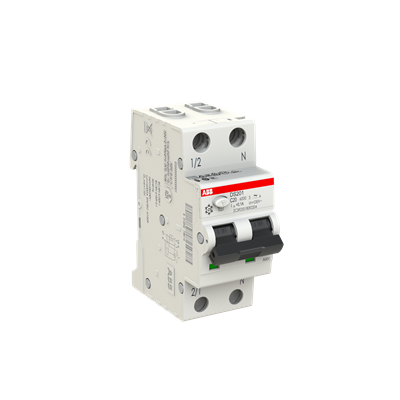

Product Type	Residual Current Circuit Breaker with Overcurrent Protection
Brand	ABB
Ambient Temperature	-25 to 55 deg C
Breaking Capacity	10 kA
Cable Cross Section	0.75-25 sq-mm 1-Solid Core , 0.75-16 sq-mm 4-Multi-Wired
Connecting Capacity	Busbar 10-10 sq-mm, Stranded 0.75-25 sq-mm, Flexible with Ferrule 0.75-16 sq-mm, Flexible 0.75-16 sq-mm
Contact Position Indication	Red ON, Green OFF
Curve Type	C
Degree of Pollution	IP2
Degree of Protection	IP20/IP40
Depth	69 mm
Dielectric Test Voltage	2 kV
Earthing Switch Type	Undelayed
Electrical Durability	10000 Cycles
Energy Limiting Class	3
Fault Detection	Blue Flag on Toggle
Height	85 mm
Housing Colour	RAL 7035 Grey
Mounting Type	DIN Rail
Number of Poles	2
Operating Characteristic	Instantaneous
Overvoltage Category	III
Power Loss	5.7 W
Power Supply Connection	Arbitrary
Rated Current	20 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	500 V
Rated Short Circuit Current	100 mA
Rated Voltage	240 V
Residual Current Type	Type A
Short Circuit Capacity	6 kA
Standards and Approvals	IEC/EN 61009-1, IEC/EN 61009-2-1
Terminal Type	Screw Clamp
Test Voltage	110-264 V
Tightening Torque	2.8 N-m
Weight	200 g
Width	35 mm
Wire Stripping Length	12 mm
