Specifications

No. of Poles	1P+N
Rated Short-Circuit Capacity - Icn (kA)	6
Current Rating (A)	25
Family	DSE201NS
AC Voltage (V)	230
Neutral Switching	Yes
Rated Impulse Withstand Voltage (1.2/50µs)	4

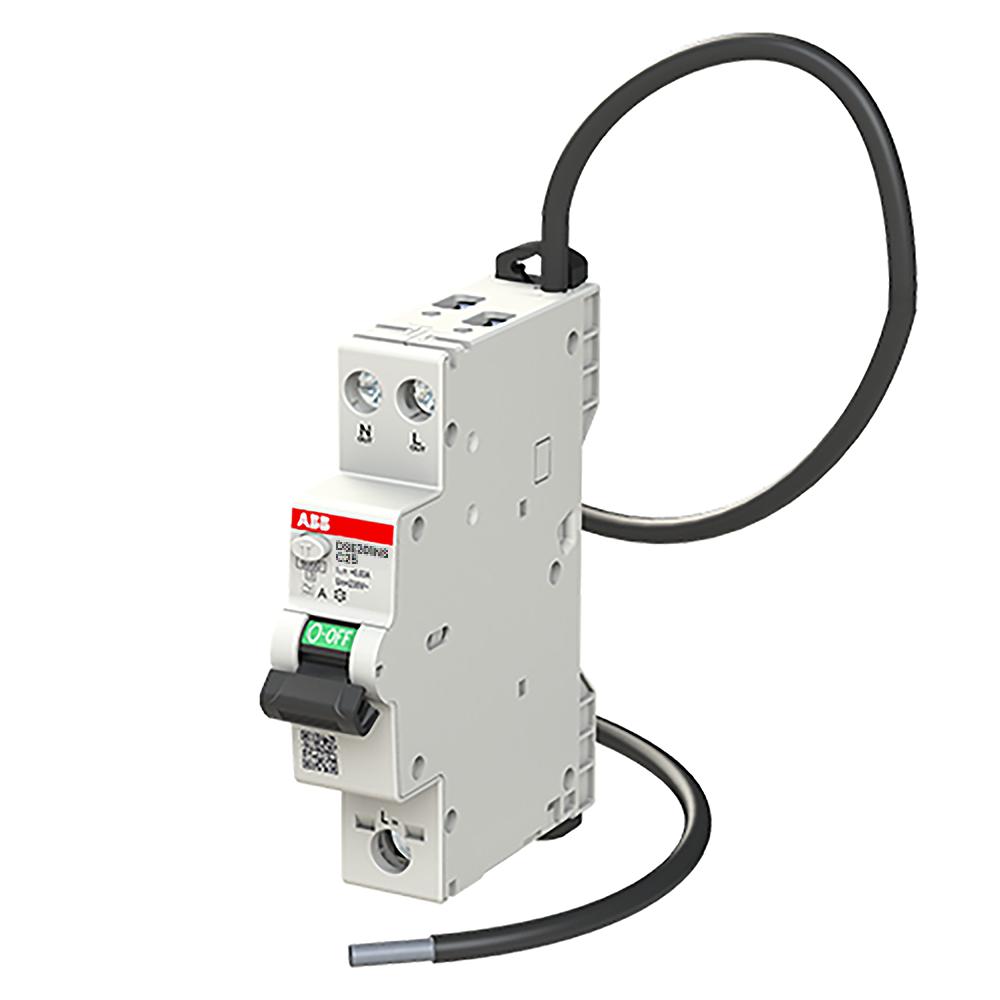

Product Type	Residual Current Circuit Breaker with Overcurrent Protection
Brand	ABB
Ambient Temperature	-25 to 55 deg C
Breaking Capacity	6 kA
Cable Cross Section	1-35 sq-mm 1-Solid Core, 1-25 sq-mm 4-Multi-Wired
Connecting Capacity	Busbar 10 sq-mm, Rigid 1-25 sq-mm, Flexible 1-16 sq-mm
Contact Position Indication	Red ON, Green OFF
Curve Type	C
Degree of Pollution	IP2
Degree of Protection	IP20
Depth	70 mm
Dielectric Test Voltage	2.5 kV
Earthing Switch Type	Undelayed
Electrical Durability	10000 Cycles
Energy Limiting Class	3
Height	86 mm
Housing Colour	RAL 7035 Grey
Mounting Type	DIN Rail
Number of Poles	1P+N
Operating Characteristic	Instantaneous
Overvoltage Category	III
Power Loss	3.7 W
Power Supply Connection	Bottom
Rated Current	25 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	4 kV
Rated Insulation Voltage	500 V
Rated Short Circuit Current	30 mA
Rated Voltage	240 V
Residual Current Type	Type A
Short Circuit Capacity	6 kA
Standards and Approvals	IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1
Terminal Type	Screw Clamp
Test Voltage	182-264 V
Trip Curve	C Curve
Weight	0.187 kg
Width	17.8 mm
Wire Stripping Length	13 mm
