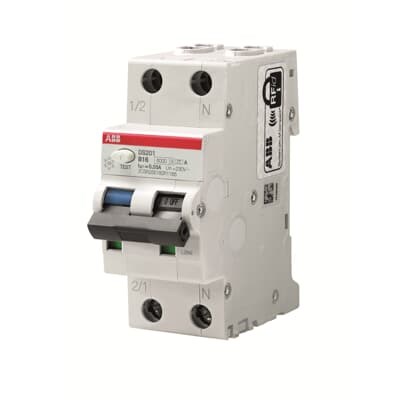

ABB DS201C25A30 Residual Current Circuit Breaker with Overcurrent Protection 6kA 2-P 30mA 25A C-Curve TypeA IP40

Product Code: DS201C25A30

  • Rated current of 25 A for reliable protection
  • Breaking capacity up to 10 kA
  • Dual pole with IP20/IP40 protection
  • Fits DIN rail, compact 35 mm width
  • Conforms to IEC/EN standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Poles 1P+N
Operational Temperature Range (°C) -25 to +55
Rated Current (A) 25
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage AC (V) 500
Rated Operational Voltage AC (V) 230/240
Rated Residual Current (mA) 30
Dimensions (mm) 35Wx85Hx69D
Type of Residual Current A
Rated Voltage (V) 230
Poles 1P+N
Breaking Capacity (kA) 6 @240 V AC
Current Rating (A) 25
Breaking Capacity 240V AC - Icu (kA) 6
Family DS200
AC Voltage (V) 230/240
Impulse Withstand Voltage (kV/1.2µS) 4
Product Type Residual Current Circuit Breaker with Overcurrent Protection
Brand ABB
Series DS200
Ambient Temperature -25 to 55 deg C
Breaking Capacity 10 kA
Cable Cross Section 0.75-25 sq-mm 1-Solid Core , 0.75-16 sq-mm 4-Multi-Wired
Connecting Capacity Busbar 10-10 sq-mm, Stranded 0.75-25 sq-mm, Flexible with Ferrule 0.75-16 sq-mm, Flexible 0.75-16 sq-mm
Contact Position Indication Red ON, Green OFF
Curve Type C
Degree of Pollution IP2
Degree of Protection IP20/IP40
Depth 69 mm
Dielectric Test Voltage 2 kV
Earthing Switch Type Undelayed
Electrical Durability 10000 Cycles
Energy Limiting Class 3
Fault Detection Blue Flag on Toggle
Height 85 mm
Housing Colour RAL 7035 Grey
Mounting Type DIN Rail
Number of Poles 2
Operating Characteristic Instantaneous
Overvoltage Category III
Power Loss 8.1 W
Power Supply Connection Arbitrary
Rated Current 25 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 500 V
Rated Short Circuit Current 30 mA
Rated Voltage 240 V
Residual Current Type Type A
Short Circuit Capacity 6 kA
Standards and Approvals IEC/EN 61009-1, IEC/EN 61009-2-1
Terminal Type Screw Clamp
Test Voltage 170-264 V
Tightening Torque 2.8 N-m
Trip Curve C Curve
Weight 200 g
Width 35 mm
Wire Stripping Length 12 mm
