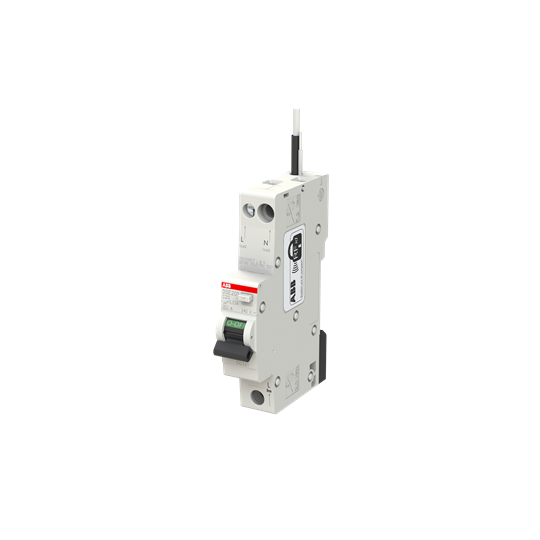

ABB DSE201C20A30 Residual Current Circuit Breaker with Overcurrent Protection 6kA 1P+N-P 30mA 20A C-Curve TypeA IP40

Product Code: DSE201C20A30

  • 20 A RCBO with 6 kA breaking capacity
  • IP20/IP40 protection, suitable for DIN rail
  • Screw clamp terminals with clear ON/OFF indication
  • Complies with IEC & AS/NZS standards
  • Compact size: 18 mm width, 100 mm height
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Poles 1
Operational Temperature Range (°C) -25 to 55
Power Loss (W) 5.5
Rated Conditional Short-Circuit Current - Inc (kA) 6
Rated Current (A) 20
Rated Frequency (Hz) 50 - 60
Rated Insulation Voltage (V) 500
Rated Impulse Withstand Voltage (kV) 4
Rated Short-Circuit Capacity - Icn (kA) 6
Rated Operational Voltage AC (V) 230 - 240
Rated Residual Current (mA) 30
Dimensions (mm) 18W x 100H x 69D
No. of Modules - Width 17.5 mm 1
Leakage Current Type A
Test Voltage (V) 195 - 264
Dielectric Test Voltage (kV) 2
Weight (g) 180
Wire Stripping Length (mm) Top: 11mm Bottom: 12.5mm
Product Type Residual Current Circuit Breaker with Overcurrent Protection
Brand ABB
Ambient Temperature -25 to 55 deg C
Breaking Capacity 6 kA
Cable Cross Section 1-25 sq-mm 1-Solid Core, 1-16 sq-mm 4-Multi-Wired
Connecting Capacity Busbar 10 sq-mm, Rigid 1-25 sq-mm, Flexible 1-16 sq-mm
Contact Position Indication Red ON, Green OFF
Curve Type C
Degree of Pollution IP2
Degree of Protection IP20/IP40
Depth 69 mm
Dielectric Test Voltage 2 kV
Earthing Switch Type Undelayed
Electrical Durability 10000 Cycles
Energy Limiting Class 3
Height 100 mm
Housing Colour RAL 7035 Grey
Mounting Type DIN Rail
Number of Poles 1P+N
Operating Characteristic Instantaneous
Overvoltage Category III
Power Loss 5.5 W
Power Supply Connection Bottom
Rated Current 20 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 500 V
Rated Short Circuit Current 30 mA
Rated Voltage 240 V
Residual Current Type Type A
Short Circuit Capacity 6 kA
Standards and Approvals IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1
Terminal Type Screw Clamp
Test Voltage 195-264 V
Tightening Torque 1.2 N-m, 2.8 N-m
Weight 180 g
Width 18 mm
Wire Stripping Length 11 mm Top, 12.5 mm Bottom

Description

DSE201 is a 1P+N residual current circuit breaker with overcurrent protection (RCBO) in one module for the protection against short-circuit currents, overload, earth fault currents, indirect contacts, additional protection against direct contacts. DSE201 is equipped with supply neutral wire and functional earth wire.
