Products

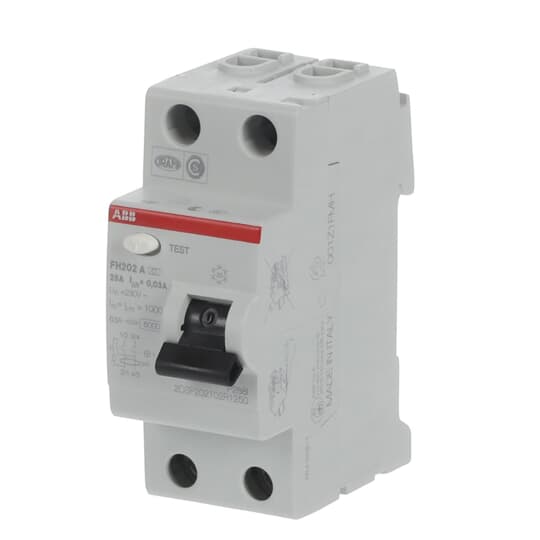

ABB FH202A25/0.03 Residual Current Circuit Breaker 2-P 25A 6kA TypeA

Product Code: FH202A25/0.03

  • Rated current of 25 A
  • 2-pole design for efficient protection
  • Complies with IEC/EN 61008 standards
  • DIN rail mounting for easy installation
  • Type A residual current sensitivity
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Poles 2
Operational Temperature Range (°C) -5 to 40
Power Loss (W) 1W per Pole
Rated Conditional Short-Circuit Current - Inc (kA) 6
Rated Current (A) 25
Rated Frequency (Hz) 50
Rated Insulation Voltage (V) 500
Rated Impulse Withstand Voltage (kV) 4
Rated Operational Voltage AC (V) 230
Rated Residual Current (mA) 30
Dimensions (mm) 35W x 85H x 69D
Type of Residual Current A
Weight (kg) 0.2
Rated Voltage (V) 230
No. of Modules - Width 17.5 mm 2
Storage Temperature Range (°C) -40 to 70
Leakage Current Type A
Product Type Residual Current Circuit Breaker
Brand ABB
Ambient Temperature -5 to 40 deg C
Breaking Capacity 1 kA
Cable Cross Section 10-25 sq-mm 4-Multi-Wired, 25-25 sq-mm 1-Solid-Core
Degree of Protection IP2X
Depth 85 mm
Height 69 mm
Mounting Type DIN Rail
Number of Poles 2
Operating Characteristic Instantaneous
Power Loss 1 W
Rated Current 25 A
Rated Frequency 50 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 500 V
Rated Short Circuit Current 6 kA
Rated Voltage 230 V
Residual Current Type Type A
Standards and Approvals IEC/EN 61008
Weight 200 g
Width 35 mm

Description

The RCCBs FH200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous AC and A types is particularly suitable for installation in domestic applications.
