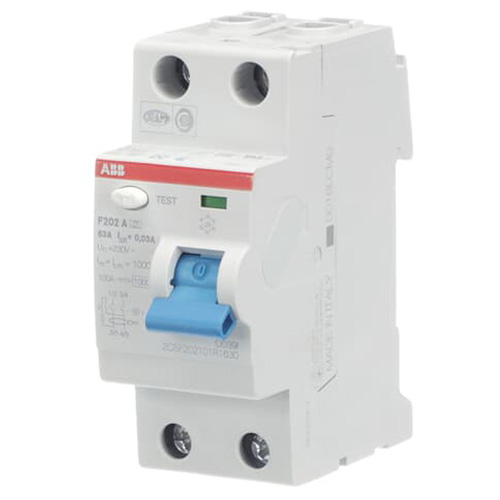

ABB F202A63/0.03 Residual Current Circuit Breaker 2-P 63A 10kA 30mA TypeA

Product Code: F202A63/0.03

  • Rated current of 63 A for efficient protection
  • Compact design with dimensions of 35x85x69 mm
  • Operates at both 50/60 Hz frequency
  • IP20/IP40 rated for varying environments
  • Suitable for DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Poles 2P
Power Loss (W) 3.2/pole
Rated Conditional Short-Circuit Current - Inc (kA) 10
Pollution Degree 2
Rated Current (A) 63
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage AC (V) 500
Rated Short-Circuit Capacity - Icn (kA) 10
Rated Operational Voltage AC (V) 230
Rated Residual Current (mA) 30
Rated Voltage AC (V) 230/400
Type of Residual Current A
Poles 2P
Current Rating (A) 63
Family F200
AC Voltage (V) 230/240
Icn-Rated Short Circuit Capacity (kA) 10
Inc-Rated Conditional Short Circuit Capacity (kA) 10
Impulse Withstand Voltage (kV/1.2µS) 4
Product Type Residual Current Circuit Breaker
Brand ABB
Series F200
Ambient Temperature -25 to 55 deg C
Application Commercial and Industrial
Breaking Capacity 30 mA
Cable Cross Section 0-35 sq-mm 4-Multi-Wired, 35-35 sq-mm 1-Solid-Core
Connecting Capacity Busbar 10 sq-mm, Rigid 35-35 sq-mm, Flexible 35-35 sq-mm
Degree of Pollution IP2
Degree of Protection IP20/IP40
Depth 69 mm
Electrical Durability 1000 Cycles
Height 85 mm
Mounting Type DIN Rail
Number of Poles 2
Operating Characteristic Instantaneous
Power Loss 3.2 W
Power Supply Connection Arbitrary
Rated Current 63 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 4 kV
Rated Insulation Voltage 500 V
Rated Short Circuit Current 10 kA
Rated Voltage 230 V
Residual Current Type Type A
Terminal Type Screw Clamp
Test Voltage 170-254 V
Tightening Torque 2.8 N-m
Weight 200 g
Width 35 mm
Wire Stripping Length 12.7 mm Top, 14.9 mm Bottom

Description

The ABB RCCB is a Type A 63A 1P+N circuit breaker designed for commercial and industrial use. It provides protection against earth leakage faults, with a sensitivity of 30mA. With a breaking capacity of 10kA at 230VAC, this RCCB ensures reliable and efficient electrical safety.
