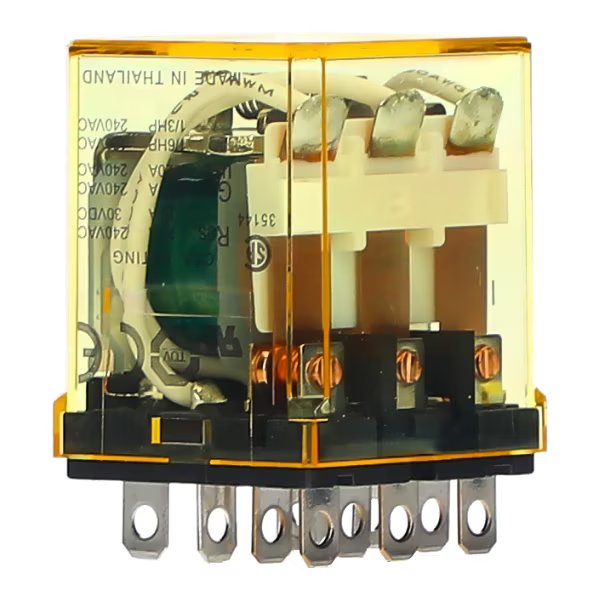

IDEC RH3B-UDC6V Power Relay 3PDT 6VDC Coil 10A Blade Terminal

Product Code: RH3B-UDC6V

  • Rated for 6 VDC and 10 A
  • Durable silver cadmium oxide contacts
  • Long electrical life: 200,000 operations
  • Fast operating time of 25 ms
  • Certified by CE, CSA, EN, UL standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Coil Voltage DC (V) 6
Contacts 3PDT
Insulation Resistance (MO) 100
No. of Poles 3
Power Consumption (W) 1.5
Weight (g) 50
Minimum Mechanical Life 50,000,000
Operating Humidity 45 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape Blade Terminal
Contact Resistance (mO) 50
Product Type Power Relay
Brand IDEC
Contact Configuration 3PDT
Contact Material Silver Cadmium Oxide
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Number of Poles 3
Operating Time 25 ms
Rated Current 10 A
Rated Power 1.5 W
Rated Voltage 6 VDC
Shock Resistance 1000 ms
Standards and Approvals CE, CSA. EN, UL
Terminal Type Blade
Vibration Resistance 10-55 Hz
Weight 50 g

Description

The IDEC RH3B-UDC6V is a compact 3PDT power relay designed for efficient space utilization without compromising on capacity. It offers a significant 10A contact capacity, suitable for various applications requiring high-power handling in a miniature form factor. This basic relay ensures reliable performance with its large capacity and space-saving design.
