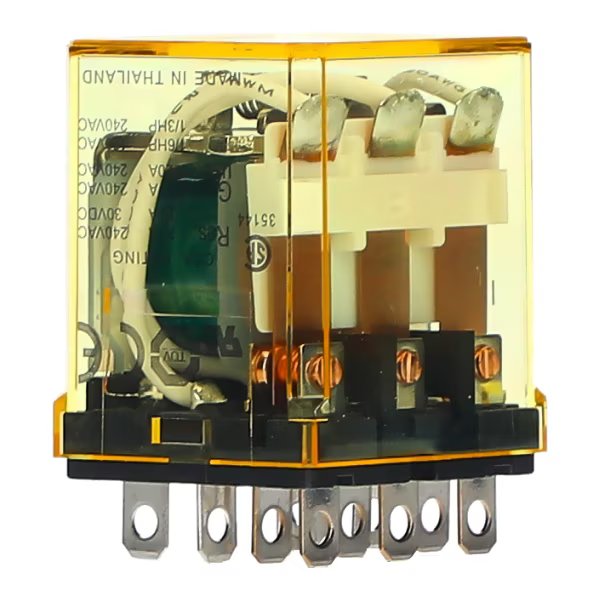

IDEC RH3B-ULCAC120V Power Relay 3PDT 120VAC Coil 10A Blade Terminal

Product Code: RH3B-ULCAC120V

  • 120 VAC, 10 A rated for robust performance
  • Durable with 200k electrical operations
  • Fast 25 ms operating time
  • CE, CSA, EN, UL certified for safety
  • High insulation resistance of 100 MOhm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 3PDT
Coil Voltage AC (V) 120
Insulation Resistance (MO) 100
No. of Poles 3
Power Consumption (W) 1.5
Weight (g) 50
Minimum Mechanical Life 50,000,000
Operating Humidity 45 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape Blade Terminal
Contact Resistance (mO) 50
Product Type Power Relay
Brand IDEC
Contact Configuration 3PDT
Contact Material Silver Cadmium Oxide
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Number of Poles 3
Operating Time 25 ms
Rated Current 10 A
Rated Power 1.5 W
Rated Voltage 120 VAC
Shock Resistance 1000 ms
Standards and Approvals CE, CSA. EN, UL
Terminal Type Blade
Vibration Resistance 10-55 Hz
Weight 50 g

Description

The IDEC RH3B-ULCAC120V is a compact 3PDT relay with a 10A contact capacity, designed for efficient space utilization. It features an integrated LED and check button for easy status indication and testing. This miniature power relay combines large capacity switching with a small footprint, making it ideal for various applications where space is at a premium.
