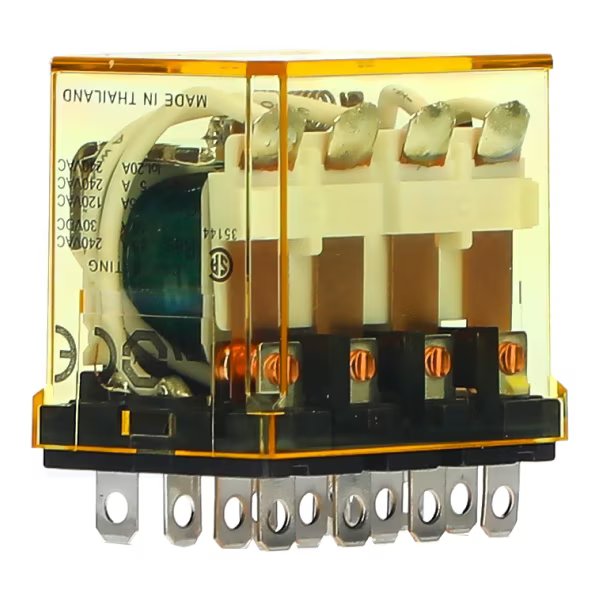

IDEC RH4B-ULC-DC125V Power Relay 4PDT 125VDC Coil 10A Blade Terminal

Product Code: RH4B-ULC-DC125V

  • Handles up to 125 VDC and 10 A
  • Durable with 200k electrical ops
  • Quick 25 ms operating time
  • Reliable silver cadmium oxide contacts
  • Certified: CE, CSA, EN, UL
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Insulation Resistance (MO) 100
No. of Poles 4
Power Consumption (W) 1.5
Coil Voltage DC (V) 125
Contacts 4PDT
Weight (g) 74
Minimum Mechanical Life 50,000,000
Operating Humidity 45 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape Blade Terminal
Contact Resistance (mO) 50
Product Type Power Relay
Brand IDEC
Contact Configuration 4PDT
Contact Material Silver Cadmium Oxide
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Number of Poles 4
Operating Time 25 ms
Rated Current 10 A
Rated Power 1.5 W
Rated Voltage 125 VDC
Shock Resistance 1000 ms
Standards and Approvals CE, CSA, EN, Lloyd Register, UL
Terminal Type Blade
Vibration Resistance 10-55 Hz
Weight 74 g

Description

The IDEC RH4B-ULC-DC125V is a compact, high-capacity 4PDT relay designed for efficient operation in space-constrained environments. It features a 10A contact capacity and includes an indicator and check button for easy status verification and testing. This miniature power relay combines reliable switching with a space-saving design, making it suitable for a wide range of applications.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
