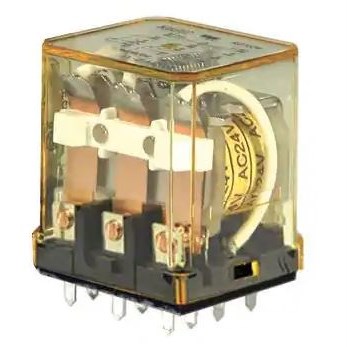

IDEC RH4B-LD-DC48V Power Relay 4PDT 48VDC Coil 10A

Product Code: RH4B-LD-DC48V

  • 48 VDC, 10 A rated power
  • Durable with 200k electrical ops
  • 4PDT silver cadmium oxide contacts
  • CE, CSA, EN, Lloyd Register, UL approved
  • Compact and lightweight at 74 g
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Insulation Resistance (MO) 100
No. of Poles 4
Power Consumption (W) 1.5
Coil Voltage DC (V) 48
Contacts 4PDT
Weight (g) 74
Minimum Mechanical Life 50,000,000
Operating Humidity 45 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Contact Resistance (mO) 50
Product Type Power Relay
Brand IDEC
Contact Configuration 4PDT
Contact Material Silver Cadmium Oxide
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Number of Poles 4
Operating Time 25 ms
Rated Current 10 A
Rated Power 1.5 W
Rated Voltage 48 VDC
Shock Resistance 1000 ms
Standards and Approvals CE, CSA, EN, Lloyd Register, UL
Vibration Resistance 10-55 Hz
Weight 74 g

Description

The IDEC RH4B-LD-DC48V is a compact, high-capacity 4PDT relay designed for efficient operation in power applications. It features a 10A contact capacity and includes an indicator and diode for enhanced functionality. The miniature size of this relay allows for space-saving installation without compromising on performance. Suitable for a wide range of uses where reliable switching is required in a compact form factor.
