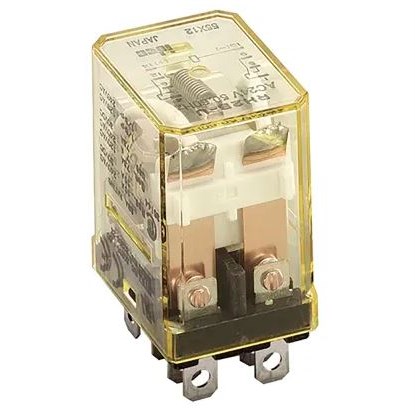

IDEC RH2B-ULAC32V Power Relay DPDT 32VAC Coil 10A Blade Terminal

Product Code: RH2B-ULAC32V

  • Rated for 32 VAC, 10 A, and 0.9 W power
  • DPDT contact config with blade terminals
  • Durable silver cadmium oxide contacts
  • Long electrical life: 200k operations
  • CE, CSA, RoHS certified for safety
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts DPDT
Coil Voltage AC (V) 32
Insulation Resistance (MO) 100
No. of Poles 2
Power Consumption (W) 0.9
Weight (g) 37
Minimum Mechanical Life 50,000,000
Operating Humidity 45 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape Blade Terminal
Contact Resistance (mO) 50
Product Type Power Relay
Brand IDEC
Contact Configuration DPDT
Contact Material Silver Cadmium Oxide
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Number of Poles 2
Operating Time 20 ms
Rated Current 10 A
Rated Power 0.9 W
Rated Voltage 32 VAC
Shock Resistance 1000 ms
Standards and Approvals CE, CSA, RoHS
Terminal Type Blade
Vibration Resistance 10-55 Hz
Weight 37 g

Description

The IDEC RH2B-ULAC32V is a compact, high-capacity DPDT relay with an integrated LED indicator. It offers a 10A contact capacity within its miniature frame, ensuring space-saving installation without sacrificing performance. This power relay is designed for efficient operation in various applications where size and power are considerations.
