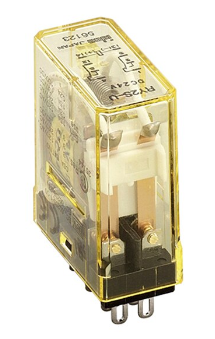

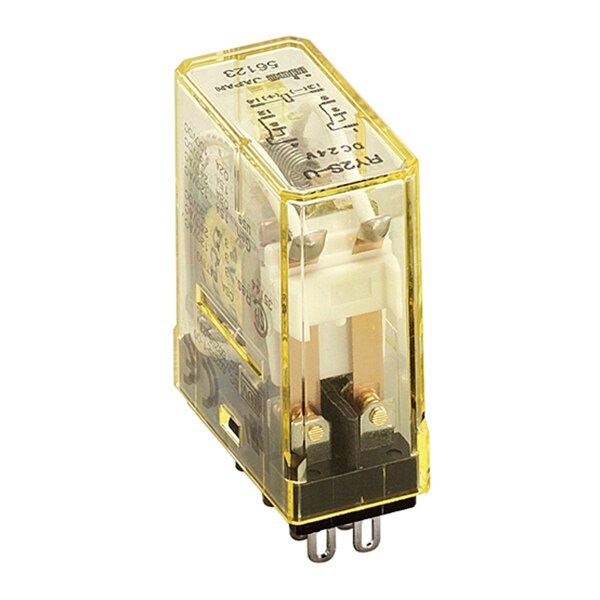

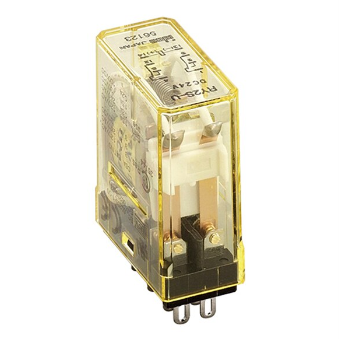

IDEC RY2S-UAC110 Miniature Relay DPDT 3A Blade Terminal

Product Code: RY2S-UAC110

  • Rated current of 3 A for general use
  • DPDT contact config with blade terminals
  • Gold plated silver contacts ensure durability
  • High electrical life of 200,000 operations
  • CE, cRuus, and CSA approved
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Ambient Temperature Range (°C) -25 to 50
Contacts DPDT
Coil Voltage AC (V) 110
Dimensions (mm) 14W x 35.6H x 27.5D
Insulation Resistance (MO) 100
Operational Temperature Range (°C) -25 to 50
Power Consumption (W) DC: 0.8W
Rated Current (A) 3
Power Consumption (VA) AC: 1.1VA (50Hz), 1VA (60Hz)
Contact Resistance (mO) 50
Weight (g) 23
Minimum Mechanical Life 50,000,000 Operations
Minimum Electrical Life 200,000 Operations
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 100
Product Type Miniature Relay
Brand IDEC
Coil Voltage 110 VAC
Contact Configuration DPDT
Contact Material Gold Plated Silver
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Model Basic
Operational Temperature -25 to 50 deg C
Rated Current 3 A
Rated Power 0.8 W
Shock Resistance 100 ms
Standards and Approvals CE, cRuus, CSA
Terminal Type Blade
Vibration Resistance 10-55 Hz
Weight 23 g

Description

The IDEC RY2S-UAC110 is a compact, industrial general-purpose signaling relay designed for reliable performance. It features a DPDT (Double Pole Double Throw) configuration that allows for versatile switching applications. With a 3A contact rating and 110V AC coil voltage, it meets the demands of various electrical circuits. Additionally, this relay is RoHS compliant, ensuring adherence to environmental standards.
