Product Code: RH2B-ULC-DC125V

125 VDC, 10 A rated for reliable power handling
Durable DPDT blade terminals for secure connections
Silver Cadmium Oxide contacts enhance conductivity
Long electrical life: 200k operations
Complies with CE, CSA, RoHS standards

Specifications

Coil Voltage DC (V)	125
Contacts	DPDT
Insulation Resistance (MO)	100
No. of Poles	2
Power Consumption (W)	0.9
Weight (g)	37
Minimum Mechanical Life	50,000,000
Operating Humidity	45 to 85%
Minimum Electrical Life	200,000
Resistance to Vibrations	10 to 55Hz
Resistance to Shock (m/s²)	1000
Terminal Shape	Blade Terminal
Contact Resistance (mO)	50
Product Type	Power Relay
Brand	IDEC
Contact Configuration	DPDT
Contact Material	Silver Cadmium Oxide
Contact Resistance	50 MOhm
Electrical Life	200000 Operations
Humidity	45-85%
Insulation Resistance	100 MOhm
Mechanical Life	50000000 Operations
Number of Poles	2
Operating Time	20 ms
Rated Current	10 A
Rated Power	0.9 W
Rated Voltage	125 VDC
Shock Resistance	1000 ms
Standards and Approvals	CE, CSA, RoHS
Terminal Type	Blade
Vibration Resistance	10-55 Hz
Weight	37 g

Description

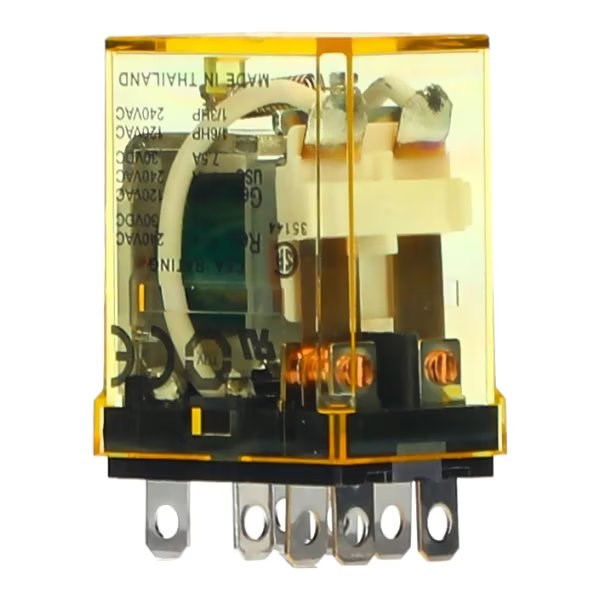

The IDEC RH2B-ULC-DC125V is a compact, high-capacity DPDT relay designed for efficient operation in space-constrained environments. It features a 10A contact capacity and includes an indicator and check button for easy monitoring and testing. This miniature power relay combines reliable switching with a compact form factor, making it ideal for a wide range of applications.
