Product Code: RQ1V-CM-A230

Rated for 12 A with 230 VAC coil voltage
SPDT contact config with silver nickel alloy
Compact size: 12.7 mm W x 29 mm H x 15 mm D
Durable: 100k electrical & 10M mechanical ops
CE, cRuUS, UL Recognized standards approved

Specifications

Contacts	SPDT
Coil Voltage AC (V)	230
Dimensions (mm)	12.7W x 29H x 15D
No. of Poles	1
Operational Temperature Range (°C)	-40 to 85
Contact Resistance (mO)	100
Weight (g)	15
Minimum Mechanical Life	10,000,000
Operating Humidity	45 to 85%
Minimum Electrical Life	100,000
Resistance to Vibrations	10 to 55Hz
Product Type	PCB Relay
Brand	IDEC
Coil Voltage	230 VAC
Contact Configuration	SPDT
Contact Material	Silver Nickel Alloy
Contact Resistance	100 MOhm
Depth	15 mm
Electrical Life	100000 Operations
Height	29 mm
Humidity	45-85%
Mechanical Life	10000000 Operations
Model	Basic
Number of Poles	1
Operating Time	12 ms
Operational Temperature	-40 to 85 deg C
Rated Current	12 A
Standards and Approvals	CE, cRuUS, UL Recognized File E59804
Vibration Resistance	10-55 Hz
Weight	15 g
Width	12.7 mm

Description

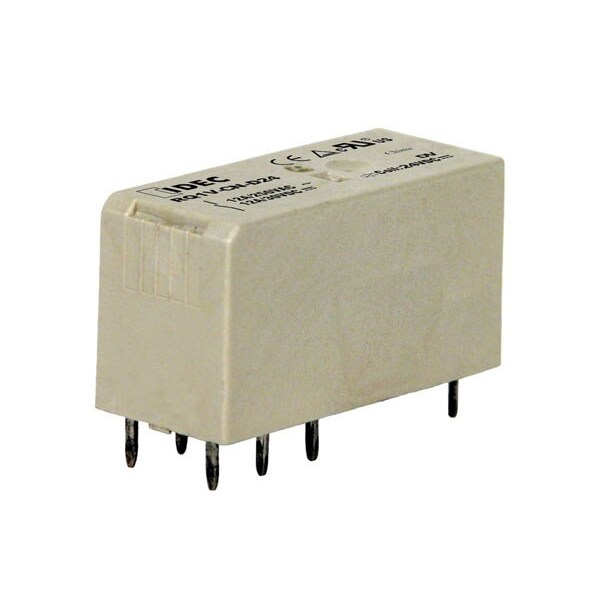

The IDEC RQ1V-CM-A230 is a high-capacity, low-profile relay designed for PCB applications. It features a Single Pole Double Throw (SPDT) contact configuration with a 12A contact rating at 240V AC. This relay is compatible with LED/Diode plug-in modules and can be easily mounted on a DIN rail socket. Its compact size ensures efficient use of space without compromising on performance.
