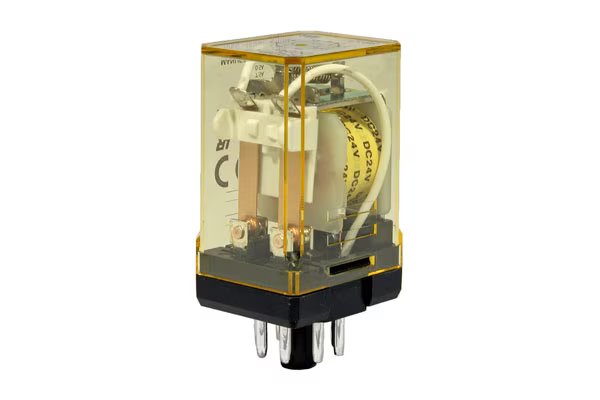

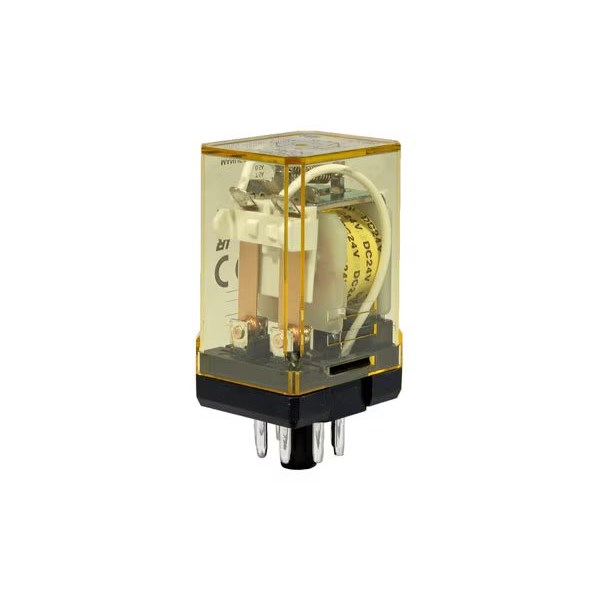

IDEC RR2P-ULCAC120V Power Relay DPDT 120VAC Coil 10A Pin Terminal

Product Code: RR2P-ULCAC120V

  • Rated for 120 VAC and 10 A
  • Durable DPDT contact configuration
  • Quick 25 ms operating time
  • Long electrical life of 200,000 ops
  • CE and CSA approved
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts DPDT
Coil Voltage AC (V) 120
Operational Temperature Range (°C) -25 to 40
Weight (g) 90
Minimum Mechanical Life 10,000,000
Operating Humidity 5 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 100
Terminal Shape Pin Terminal
Contact Resistance (mO) 30
Product Type Power Relay
Brand IDEC
Contact Configuration DPDT
Contact Material Silver
Contact Resistance 30 MOhm
Electrical Life 200000 Operations
Humidity 5-85%
Mechanical Life 10000000 Operations
Model With Indicator and Check Button
Operating Time 25 ms
Operational Temperature -25 to 40 deg C
Rated Current 10 A
Rated Voltage 120 VAC
Shock Resistance 100 ms
Standards and Approvals CE, CSA
Terminal Type Pin
Vibration Resistance 10-55 Hz
Weight 90 g

Description

The IDEC RR2P-ULCAC120V is a robust DPDT plug-in relay designed for versatile applications, offering a high current rating of 10A at 120V AC. It ensures high reliability and longevity, suitable for demanding environments. This relay boasts global certifications including UL, CSA, TUV, and CE on its octal models. It features practical options such as a check button for testing and an indicator light for status monitoring. With flexible mounting solutions like flange mounting, DIN socket, or panel mount socket, it provides ease of installation in various setups.
