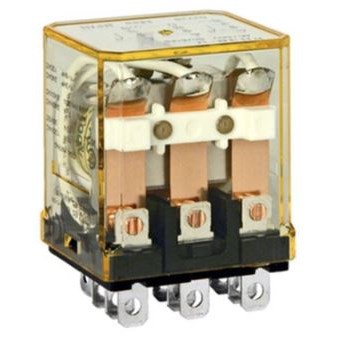

IDEC RH3B-D-DC24V Power Relay 3PDT 24VDC Coil Blade Terminal

Product Code: RH3B-D-DC24V

  • Rated voltage of 24 VDC
  • Durable with 200k electrical ops
  • Fast operating time of 25 ms
  • CE, CSA, EN, UL approved
  • Lightweight at 50 g
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Insulation Resistance (MO) 100
No. of Poles 3
Power Consumption (W) 1.5
Coil Voltage DC (V) 24
Contacts 3PDT
Weight (g) 50
Minimum Mechanical Life 50,000,000
Operating Humidity 45 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape Blade Terminal
Contact Resistance (mO) 50
Product Type Power Relay
Brand IDEC
Contact Configuration 3PDT
Contact Material Silver Cadmium Oxide
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Number of Poles 3
Operating Time 25 ms
Rated Power 1.5 W
Rated Voltage 24 VDC
Shock Resistance 1000 ms
Standards and Approvals CE, CSA. EN, UL
Terminal Type Blade
Vibration Resistance 10-55 Hz
Weight 50 g

Description

The IDEC RELAY RH3B-D-DC24V is a compact power relay designed for high-capacity switching. It features a 10A contact capacity within its miniature frame, offering a space-saving solution for power relay needs. This relay is ideal for applications where large switching capacity and efficient use of space are required.
