Product Code: RH1B-UD-DC24V

24 VDC, 10 A rated for reliable power usage
SPDT contact with silver cadmium oxide material
Fast 20 ms operating time for quick response
Long electrical life of 200,000 operations
CE, CSA, EN, Lloyd Register, UL approved

Specifications

Coil Voltage DC (V)	24
Contacts	SPDT
Insulation Resistance (MO)	100
No. of Poles	1
Power Consumption (W)	0.8
Weight (g)	24
Minimum Mechanical Life	50,000,000
Operating Humidity	45 to 85%
Minimum Electrical Life	200,000
Resistance to Vibrations	10 to 55Hz
Resistance to Shock (m/s²)	1000
Terminal Shape	Blade Terminal
Contact Resistance (mO)	50
Product Type	Power Relay
Brand	IDEC
Contact Configuration	SPDT
Contact Material	Silver Cadmium Oxide
Contact Resistance	50 MOhm
Electrical Life	200000 Operations
Humidity	45-85%
Insulation Resistance	100 MOhm
Mechanical Life	50000000 Operations
Number of Poles	1
Operating Time	20 ms
Rated Current	10 A
Rated Power	0.8 W
Rated Voltage	24 VDC
Shock Resistance	1000 ms
Standards and Approvals	CE, CSA, EN, Lloyd Register, UL
Terminal Type	Blade
Vibration Resistance	10-55 Hz
Weight	24 g

Description

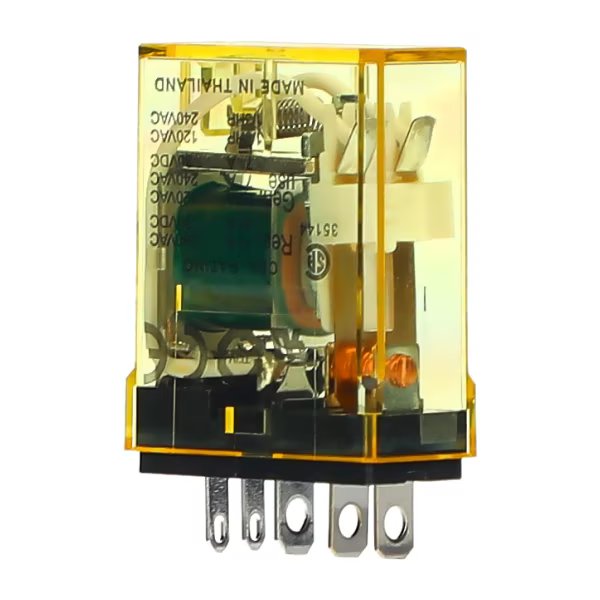

The IDEC RH1B-UD-DC24V is a compact, high-capacity power relay featuring SPDT through 4PDT contacts with a 10A rating. Its miniature design allows for space-saving installation while providing robust switching capabilities. The inclusion of a diode across the coil ensures protection against voltage spikes during operation. This relay is ideal for applications where reliable performance and efficient use of space are critical.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

IDEC RH1B-UD-DC24V Power Relay SPDT 24VDC Coil 10A Blade Terminal
