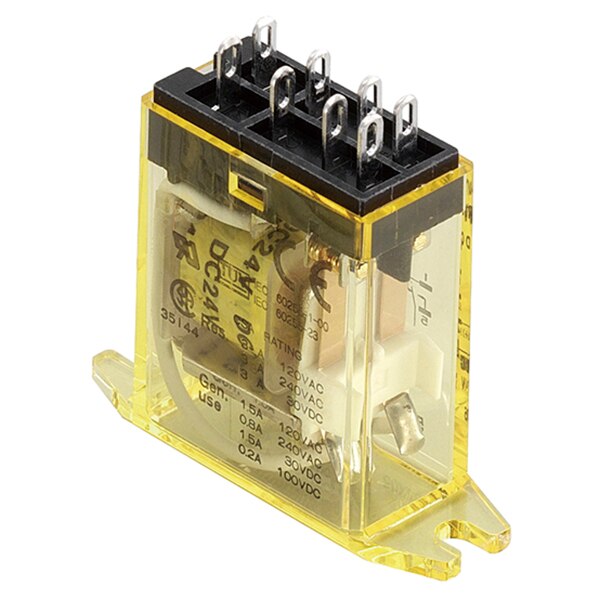

IDEC RY2S-UTAC120V Miniature Relay DPDT 3A

Product Code: RY2S-UTAC120V

  • Rated for 3 A with 120 VAC coil voltage
  • DPDT contacts with gold-plated silver
  • High electrical life: 200,000 operations
  • Robust mechanical life: 5 million ops
  • CE, cRuus, CSA approved
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts DPDT
Coil Voltage AC (V) 120
Insulation Resistance (MO) 100
Operational Temperature Range (°C) -25 to 50
Weight (g) 23
Minimum Mechanical Life 5,000,000
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 100
Contact Resistance (mO) 50
Product Type Miniature Relay
Brand IDEC
Coil Voltage 120 VAC
Contact Configuration DPDT
Contact Material Gold Plated Silver
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 5000000 Operations
Model Top Bracket Mounting
Operational Temperature -25 to 55 deg C
Rated Current 3 A
Shock Resistance 100 ms
Standards and Approvals CE, cRuus, CSA
Vibration Resistance 10-55 Hz
Weight 23 g

Description

The IDEC RY2S-UTAC120V is a versatile DPDT relay designed for top mounting with a 3A, 120V AC rating. It features gold-plated contacts for reliable conductivity and offers both blade plug-in and PCB terminal connections. This relay is enhanced with optional features such as an indicator light, check button, and a top mounting bracket. It provides flexible installation options including DIN socket, PCB socket, or panel mount socket to meet various application requirements.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
