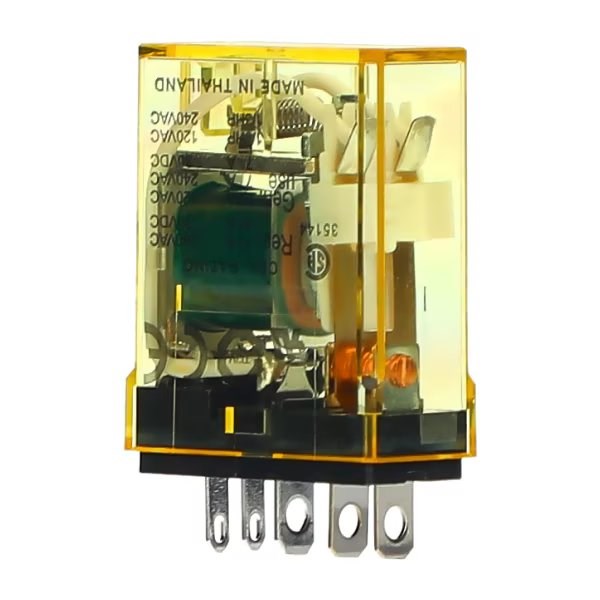

IDEC RH1B-UTDC12V Power Relay SPDT 12VDC Coil 10A Blade Terminal

Product Code: RH1B-UTDC12V

  • 12 VDC, 10 A rated for reliable power.
  • SPDT configuration with blade terminals.
  • Durable silver cadmium oxide contacts.
  • Long electrical life: 200,000 operations.
  • CE, CSA, EN, UL approved.
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Insulation Resistance (MO) 100
No. of Poles 1
Power Consumption (W) 0.8
Coil Voltage DC (V) 12
Contacts SPDT
Weight (g) 24
Minimum Mechanical Life 50,000,000
Operating Humidity 45 to 85%
Minimum Electrical Life 200,000
Resistance to Vibrations 10 to 55Hz
Resistance to Shock (m/s²) 1000
Terminal Shape Blade Terminal
Contact Resistance (mO) 50
Product Type Power Relay
Brand IDEC
Contact Configuration SPDT
Contact Material Silver Cadmium Oxide
Contact Resistance 50 MOhm
Electrical Life 200000 Operations
Humidity 45-85%
Insulation Resistance 100 MOhm
Mechanical Life 50000000 Operations
Number of Poles 1
Operating Time 20 ms
Rated Current 10 A
Rated Power 0.8 W
Rated Voltage 12 VDC
Shock Resistance 1000 ms
Standards and Approvals CE, CSA, EN, Lloyd Register, UL
Terminal Type Blade
Vibration Resistance 10-55 Hz
Weight 24 g

Description

The IDEC RH1B-UTDC12V is a top-mount relay offering SPDT through 4PDT configurations with a robust 10A contact capacity. This miniature power relay combines large capacity switching with a compact design, optimizing space efficiency. Ideal for high-density installation, it operates on a 12V DC power supply and ensures reliable performance in various applications requiring compact yet powerful relays.
