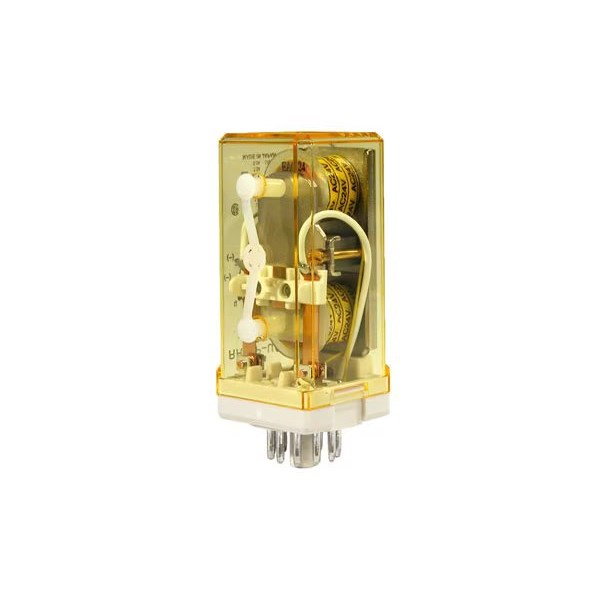

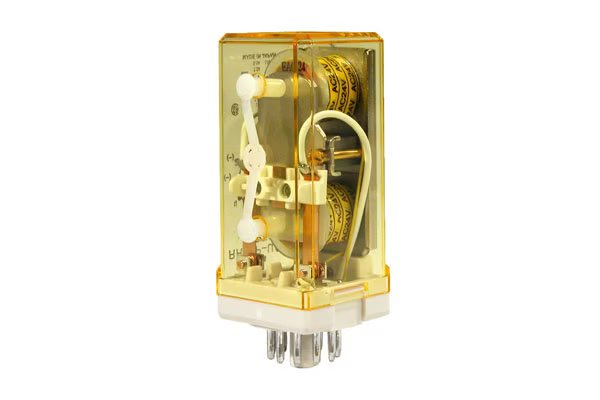

The latching relay you're considering is a robust and reliable choice for industrial and commercial applications. Designed to handle demanding environments, it offers a rated current of 10 A and operates efficiently with a power rating of 1.5 W. Its coil voltage is set at 24 VDC, making it suitable for various electrical systems.
This relay features a DPDT (Double Pole Double Throw) contact configuration, providing versatility in switching applications. The contacts are made from silver, ensuring excellent conductivity and durability over time. With a contact resistance of 30 mOhm, this relay maintains low energy loss during operation.
Built to last, the device boasts an impressive electrical life of up to 500,000 operations and an even more remarkable mechanical life of up to 5 million operations. This longevity makes it ideal for installations where reliability is paramount.
Installation is straightforward thanks to its pin plug-in terminal type, which simplifies integration into existing systems or new projects. It has an operating time of just 25 ms, ensuring quick response times that are crucial in many automated processes.
In terms of resilience, the relay can withstand shock resistance up to 100 ms and vibration frequencies ranging from 5-55 Hz—attributes that make it suitable for environments subject to mechanical stresses. Additionally, it performs well under varying humidity conditions between 45% and 85%, as well as operational temperatures from -25°C to 40°C.
The product complies with CSA and UL standards which assures you that it meets rigorous safety and quality benchmarks recognized internationally. Weighing only 170 grams, it's lightweight yet sturdy enough for dependable performance.
Overall, this latching relay combines practicality with endurance—a must-have component if your project demands consistent performance under challenging conditions without compromising on safety or efficiency.
