ABB REV7.5T113N Reversing Motor Starter 7.5kW 690VAC 18A

Product Code: REV7.5T113N

  • Reversing starter for motor control
  • Suitable for 690 VAC systems
  • Handles current up to 18 A
  • IP20 protection against solid objects
  • Screw terminal connections
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) 690
Rated Control Circuit Voltage AC/DC (V) 100 - 250
Rated Impulse Withstand Voltage (kV) 6
Rated Operational Current AC-3 415V (A) 18
Rated Operational Power AC-3 415V (kW) 7.5
Rated Operational Voltage AC (V) 690
Auxiliary Contacts 1NO
Contacts 3NO (Main Contacts)
Rated Operational Current AC-1 690V (A) 30
Product Type Reversing Motor Starter
Brand ABB
Contact Configuration 3NO
Degree of Protection IP20
Rated Current 18 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Power 7.5 kW
Rated Voltage 690 VAC
Terminal Type Screw

Description

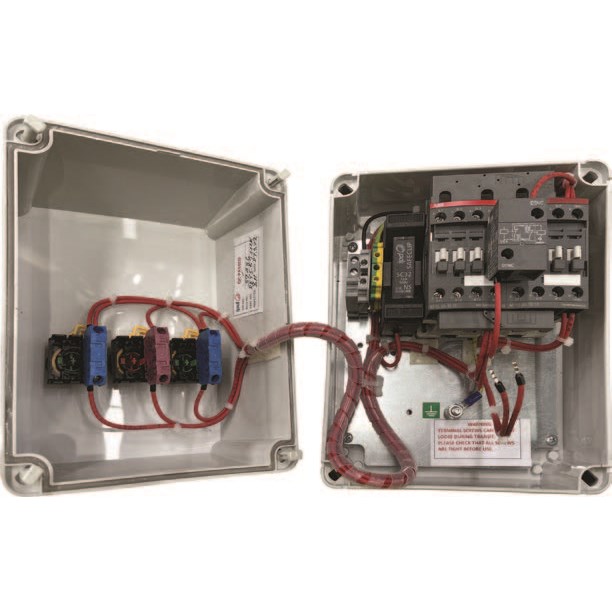

The reversing starter is a product that includes two contactors. These contactors have a rated operational current of 30A at 690V (AC1) and 18A at 415V (AC-3). The starter has a power rating of 7.5kW and is compatible with control supply voltages ranging from 100V to 250V AC/DC. It also features a mechanical and electrical interlock set, specifically designed for the interlocking of two AF contactors. Please note that an overload relay is not included with this product. Additionally, the reversing starter has an IP65 rating, indicating its level of protection against dust and water ingress.
