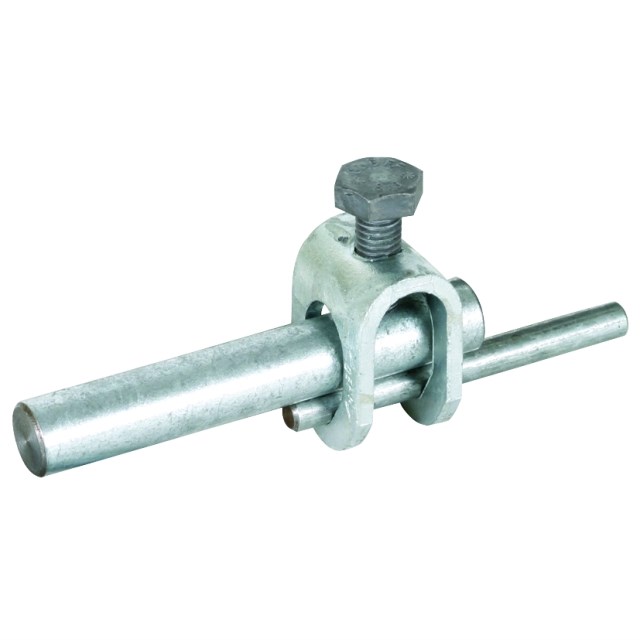

DEHN 380020 Rod Clamp M10 x 25mm Screw 8-10mm 16mm Steel

Product Code: 380020

  • M10 x 25 mm screw connection
  • Steel with hot dip galvanized finish
  • Clamping range: 8-10 mm, 16 mm
  • Lightning current capacity: 100 kA
  • Complies with EN 62561-1 standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 3W x 6H x 3D
Suitable For Diameter round conductor 8mm
Weight (kg) 0.09
Class (Lightning Current Carrying Capability) (kA) 100
Clamping Range (mm) 8 - 10 / 16
Surface Protection Hot-dip galvanized
Rod Diameter (mm) 8
Product Type Rod Clamp
Brand DEHN
Clamping Range 8-10 mm, 16 mm
Connection Type M10 x 25 mm Screw
Connector Type Rod clamp
Depth 3 mm
Finish Hot Dip Galvanized
Height 6 mm
Lid Screw Type Hexagon screw
Lightning Current Carrying Capability 100 kA
Material Steel
Screw Size M10 x 25
Standards and Approvals EN 62561-1
Weight 86 g
Width 3 mm

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
