Specifications

Air Flow (m³/h)	800/850
Operational Temperature Range (°C)	-20 to +60
Rated Current (A)	0.56/0.7
Rated Frequency (Hz)	50/60
Rated Power (W)	125/161
Rated Voltage AC (V)	230
Dimensions (mm)	375H x 295W x 119D
Noise Level (dBA)	72/73

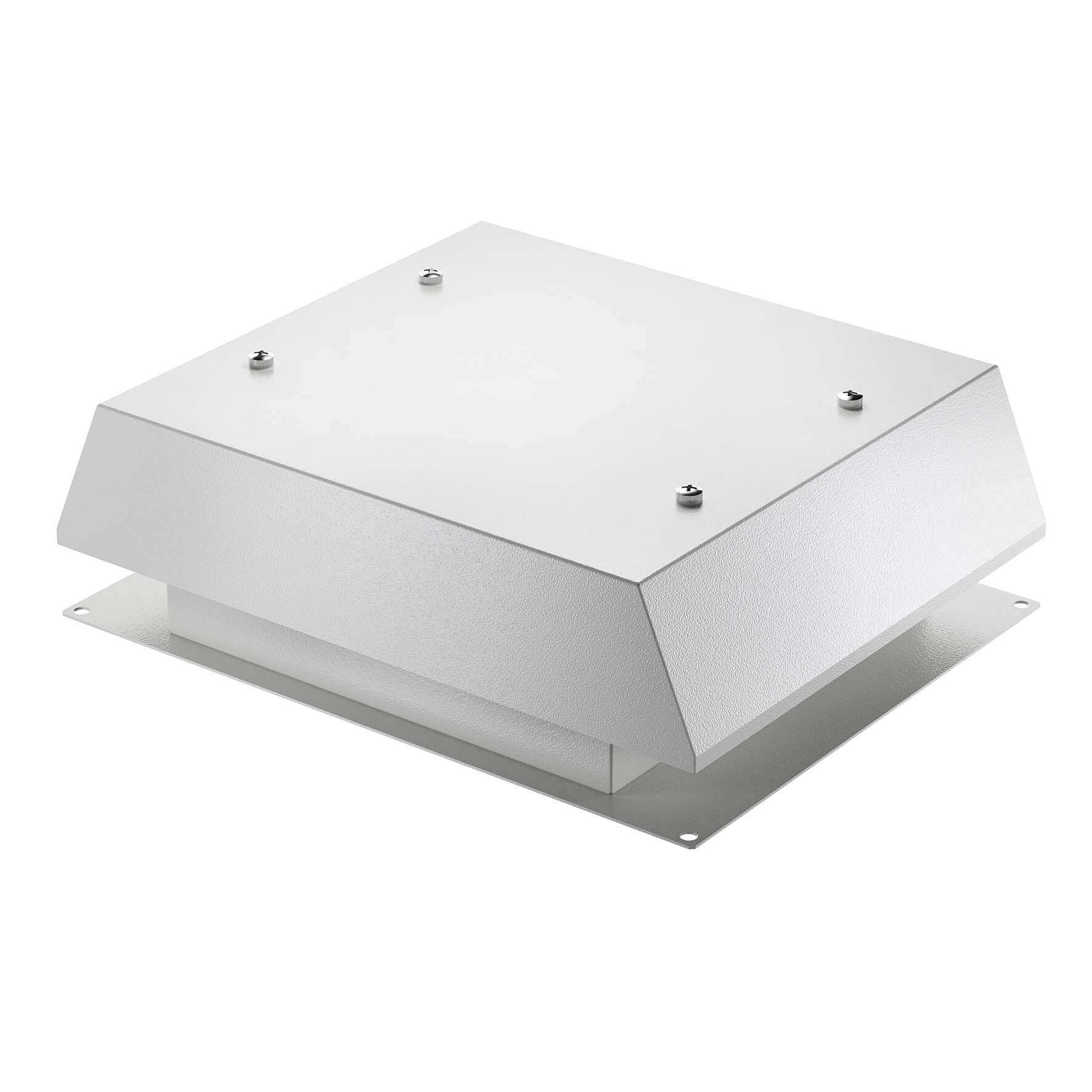

Product Type	Roof Exhaust Unit
Brand	FANDIS
Air Flow	800 cu-m/h, 850 cu-m/h
Colour	Light Grey RAL 7035
Degree of Protection	IP23
Depth	119 mm
Height	375 mm
Housing Material	Epoxy painted Steel
Material	Epoxy-Painted Steel
Noise Level	72 dBA, 73 dBA
Operational Temperature	-20 to 60 deg C
Rated Current	0.56 A, 0.7 A
Rated Frequency	50/60 Hz
Rated Power	125 W, 161 W
Rated Voltage	230 VAC, 24-250 VDC
Width	295 mm
