Specifications

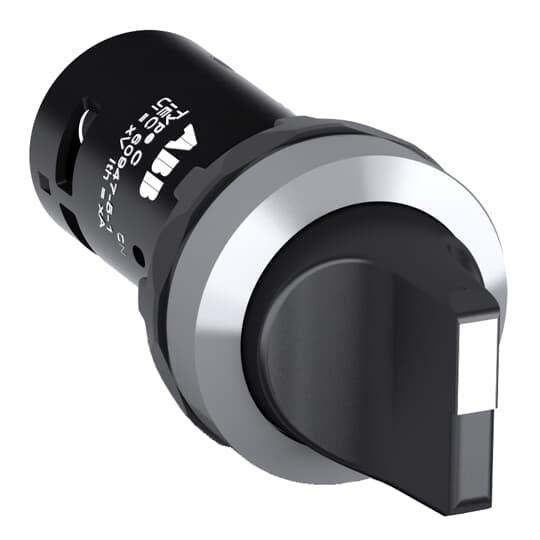

Product Type	Compact Selector Switch
Brand	ABB
Actuator Type	Short Handle
Bezel Material	Chrome Metal
Colour	Black
Contact Configuration	2NO
Degree of Protection	IP20, IP65
Depth	72 mm
Function	Maintained
Height	30 mm
Illumination	Non-Illuminated
Maintained Position	A, C
Mechanical Life	0.5 million Operations
NEMA Rating	NEMA 1, 12, 13, 3, 3R, 4, 4X
Number of Positions	2
Rated Current	0.2 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	300 V
Rated Operational Current	0.2 A, 0.3 A, 1 A
Rated Operational Voltage	300 VAC/VDC
Rated Voltage	24-300 V
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Tightening Torque	0.8 N-m
Width	30 mm
