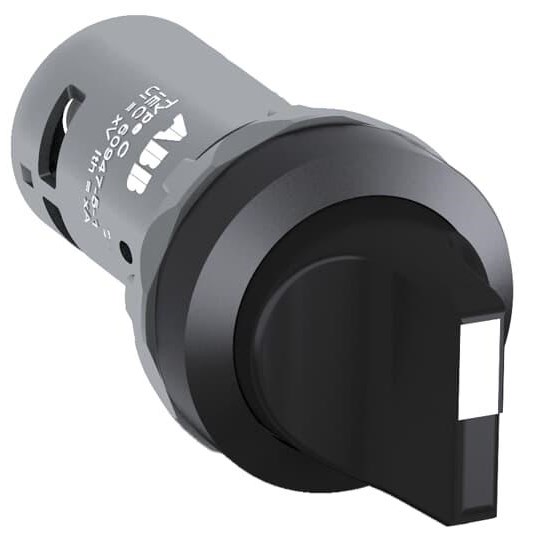

ABB C3SS1-10B-11 Selector Switch Black 24 to 300V 3Position 1NO+1NC Non-Illuminated Maintained Short Handle

Product Code: C3SS1-10B-11

  • Non-illuminated black selector switch
  • Short handle actuator with maintained function
  • IP20/IP65 protection for versatile use
  • Screw terminals with 0.8 N-m torque
  • NEMA ratings: 1, 12, 13, 3, 3R, 4, 4X
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO+1NC
Dimensions (mm) 30W X 30H X 72D
No. of Positions 3
Rated Frequency (Hz) 50/60
Tightening Torque (Nm) 0.8
Maximum Operational Voltage DC (V) 300
Maximum Operational Voltage AC (V) 300
Rated Operational Current 240V AC (A) 1
Rated Operational Current 125V DC (A) 0.2
Rated Operational Current 24V DC (A) 0.3
Product Type Selector Switch
Brand ABB
Actuator Type Short Handle
Bezel Material Plastic
Bezel Type Black Plastic
Colour Black
Contact Configuration 1NO+1NC
Degree of Protection IP20, IP65
Depth 72 mm
Function Maintained
Height 30 mm
Illumination Non-Illuminated
Maintained Position A, B, C
Mechanical Life 0.5 million Operations
Mode of Operation Maintained
NEMA Rating NEMA 1, 12, 13, 3, 3R, 4, 4X
Number of Positions 3
Rated Current 0.2 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 300 V
Rated Operational Current 0.2 A, 0.3 A, 1 A
Rated Operational Voltage 300 VAC/VDC
Rated Voltage 24-300 V
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 0.8 N-m
Width 30 mm

Description

This Non-Illuminated Selector switch is a fixed 3-position switch from the compact range. It is designed in a sleek black colour and has a maintained operation. The switch features 1 normally open (NO) and 1 normally closed (NC) contact configuration.
