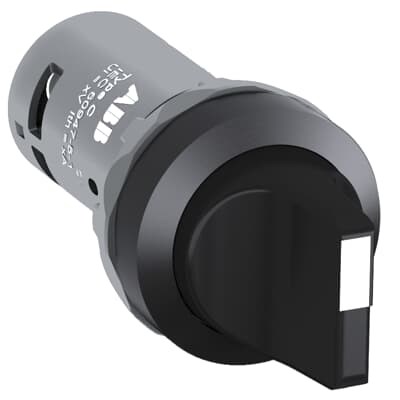

ABB C3SS3-10B-02 Selector Switch Black 24 to 300V 3Position 2NC Non-Illuminated Momentary Plastic

Product Code: C3SS3-10B-02

  • Supports 24-300 V & 0.2 A
  • Non-illuminated black design
  • IP20/IP65 protection rating
  • Short handle actuator type
  • NEMA ratings: 1, 12, 13, 3, 3R, 4, 4X
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NC
Dimensions (mm) 30W X 30H X 72D
No. of Positions 3
Rated Frequency (Hz) 50/60
Tightening Torque (Nm) 0.8
Maximum Operational Voltage DC (V) 300
Maximum Operational Voltage AC (V) 300
Rated Operational Current 240V AC (A) 1
Rated Operational Current 125V DC (A) 0.2
Rated Operational Current 24V DC (A) 0.3
Product Type Selector Switch
Brand ABB
Actuator Type Short Handle
Bezel Material Plastic
Bezel Type Black Plastic
Colour Black
Contact Configuration 2NC
Degree of Protection IP20, IP65
Depth 72 mm
Function Momentary
Height 30 mm
Illumination Non-Illuminated
Maintained Position A, C, B
Mechanical Life 0.5 million Operations
Mode of Operation Momentary
NEMA Rating NEMA 1, 12, 13, 3, 3R, 4, 4X
Number of Positions 3
Rated Current 0.2 A
Rated Frequency 50/60 Hz
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 300 V
Rated Operational Current 0.2 A, 0.3 A, 1 A
Rated Operational Voltage 300 VAC/VDC
Rated Voltage 24-300 V
Storage Temperature -40 to 85 deg C
Terminal Type Screw
Tightening Torque 0.8 N-m
Width 30 mm

Description

The Non-Illuminated Selector switch is a compact range product designed for engineers. It features a 3-position design, allowing for easy selection between options. The switch has a momentary action and is coloured black. It has 2 normally closed contacts (2NC) and returns from position C to position B.
