Specifications

Contacts	2NO
Dimensions (mm)	30W X 30H X 72D
No. of Positions	3
Rated Frequency (Hz)	50/60
Tightening Torque (Nm)	0.8
Maximum Operational Voltage DC (V)	300
Maximum Operational Voltage AC (V)	300
Rated Operational Current 240V AC (A)	1
Rated Operational Current 125V DC (A)	0.2
Rated Operational Current 24V DC (A)	0.3
Product Type	Selector Switch
Brand	ABB
Actuator Type	Short Handle
Bezel Material	Plastic
Bezel Type	Black Plastic
Colour	Black
Contact Configuration	2NO
Degree of Protection	IP20, IP65
Depth	72 mm
Function	Momentary
Height	30 mm
Illumination	Non-Illuminated
Maintained Position	C, B
Mechanical Life	0.5 million Operations
Mode of Operation	Momentary
NEMA Rating	NEMA 1, 12, 13, 3, 3R, 4, 4X
Number of Positions	3
Rated Current	0.2 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	300 V
Rated Operational Current	0.2 A, 0.3 A, 1 A
Rated Operational Voltage	300 VAC/VDC
Rated Voltage	24-300 V
Storage Temperature	-40 to 85 deg C
Terminal Type	Screw
Tightening Torque	0.8 N-m
Width	30 mm

Description

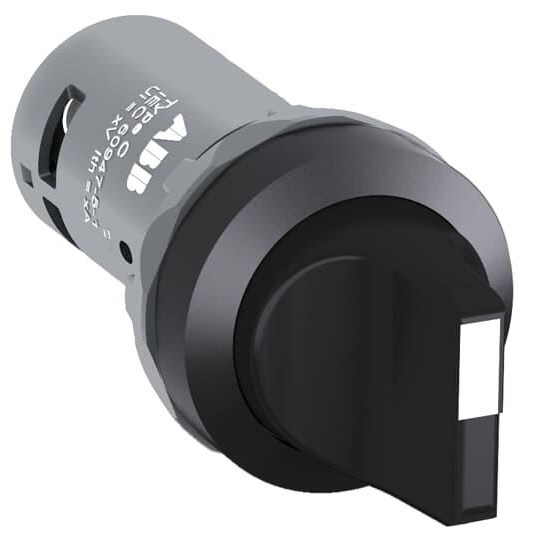

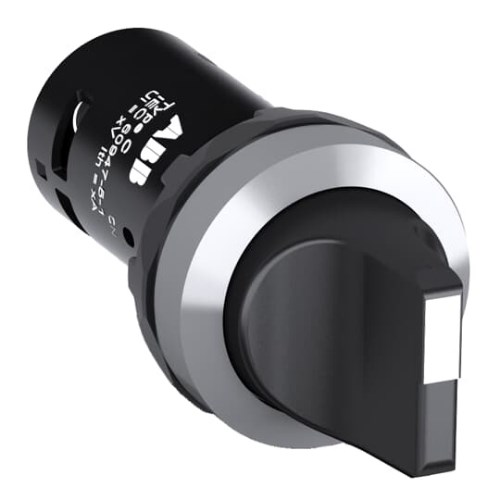

Introducing the Non-Illuminated Selector Switch from our compact range. This switch features a 3-position design, allowing for easy selection between options. The switch is black in colour and has a momentary action. It has 2 normally open (NO) contacts, providing reliable functionality. With its return from position C to B, this selector switch is perfect for various engineering applications.

Documents

IPD Product Catalogue

IPD Product Catalogue V17

ABB C3SS3-10B-20 Selector Switch Black 24 to 300V 3Position 2NO Non-Illuminated Momentary Plastic

Product Code: C3SS3-10B-20
