Specifications

Dimensions (mm)	5W x 7H x 5D
Thickness (mm)	2.5
Suitable For	Earthing
Weight (kg)	0.14
Type	Equipotential Bonding
Clamping Range (mm)	0.7-8
Conductor Cross Section (mm²)	6
Weight (g)	134
Mounting Method	Screwable
Surface Protection	Untreated
Gross Weight (g)	136.3
Rod Diameter (mm)	6-10
Holder Material	Stainless steel 304 (V2A)
Carrier Material	Stainless steel 304 (V2A)

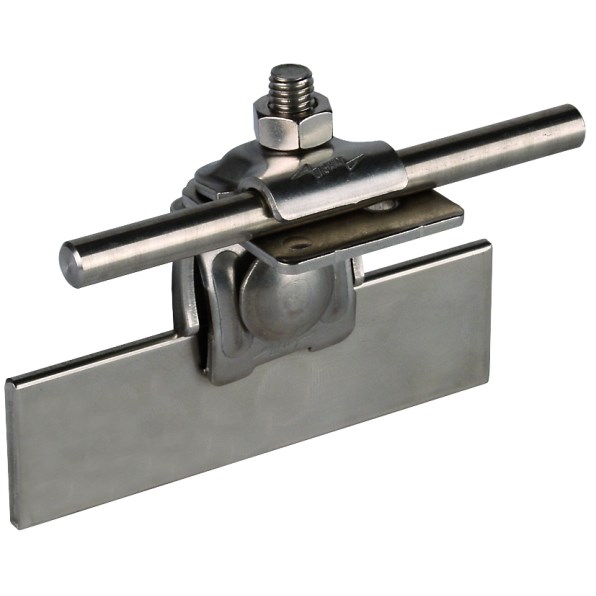

Product Type	Saddle Clamp With Clamping Frame
Brand	DEHN
Clamping Range	0.7-8 mm
Connection Type	M8 x 25 mm Screw
Connector Type	Saddle Clamp
Depth	5 mm
Finish	Untreated
Height	7 mm
Lid Screw Type	Flat round screw
Lightning Current Carrying Capability	50 kA
Material	Stainless Steel
Mounting Type	With screw clamp
Screw Size	M8
Standards and Approvals	EN 62561-1
Thickness	2.5 mm
Weight	134 g
Width	5 mm
