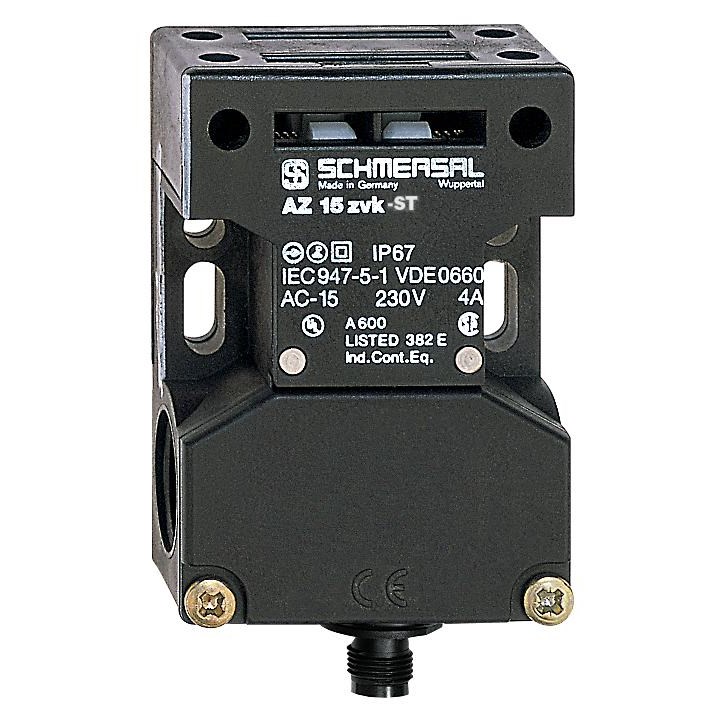

Schmersal 101161660 Safety Switch with Separate Actuator 230VAC 1NC

Product Code: 101161660

  • Operates at 230 VAC with 4 A current
  • Durable with 1 million mechanical cycles
  • IP67 protection for harsh environments
  • Slow action, positive break NC contact
  • Compact size: 30mm L x 52mm W x 75mm H
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Maximum Temperature (°C) 80
Minimum Temperature (°C) -30
Product Type Safety Switch with Separate Actuator
Brand SCHMERSAL
Series AZ15
Action Slow Action, Positive Break NC Contact
Actuating Speed 2 m/s
Contact Configuration 1NC
Contact Material Silver
Degree of Protection IP67
Housing Material Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life 1000000 Cycles
Mounting Type Screw
Operational Temperature -30 to 80 deg C
Rated Current 4 A
Rated Frequency 4000/h
Rated Insulation Voltage 500 V
Rated Voltage 230 VAC
Sensor Size 30 mm L x 52 mm W x 75 mm H
Standards and Approvals cULus, EC002592, EN IEC 60947-5-1, EN ISO 13849-1, EN ISO 14119
Weight 105 g

Description

Optimize machine safety with the Schmersal AZ15 Safety Switch, designed specifically for elevator applications. This robust switch features a thermoplastic enclosure and boasts a high latching force to ensure secure locking. It comes equipped with one safety contact and no auxiliary contacts, ensuring straightforward functionality. The switch operates with an opener (NC) switching element and includes a connector plug M12 4-pole (A-coding) for easy installation. With a thermal test current of 10 A, it is rated for use in both AC-15 (230 VAC/4 A) and DC-13 (24 VDC/2 A) utilisation categories, making it versatile for various electrical requirements. Trust in the reliability of Schmersal's engineering for your machine safety needs.
