Specifications

No. of Safety Contacts	2
No. of Cable Glands	3
Thermal Test Current (A)	10
Minimum Ambient Temperature (°C)	-30
Termination	Connector Plug M12, 4-Pole, (A-coding)
Sensor Length (mm)	30
Switching Principle	Slow Action, Positive Break NC Contact
Switching Frequency	4000/h
Sensor Width (mm)	52
Sensor Height (mm)	90
Rated Short-circuit Current (A)	1000
Minimum Mechanical Life	1000000 Operations
Positive Break Travel (mm)	8
Maximum Fuse Rating	6 A gG D-fuse
Switching Element	Opener (NC)
Maximum Storage Temperature (°C)	85
Minimum Storage Temperature (°C)	-40
Pollution Degree	3
Rated Insulation Voltage (V)	500
Maximum Ambient Temperature (°C)	80
Maximum Actuating Speed (m/s)	2
Rated Operational Current AC-15 (A)	Safety Contacts - 4A
Rated Operational Current DC-13 (A)	Safety Contacts - 4A

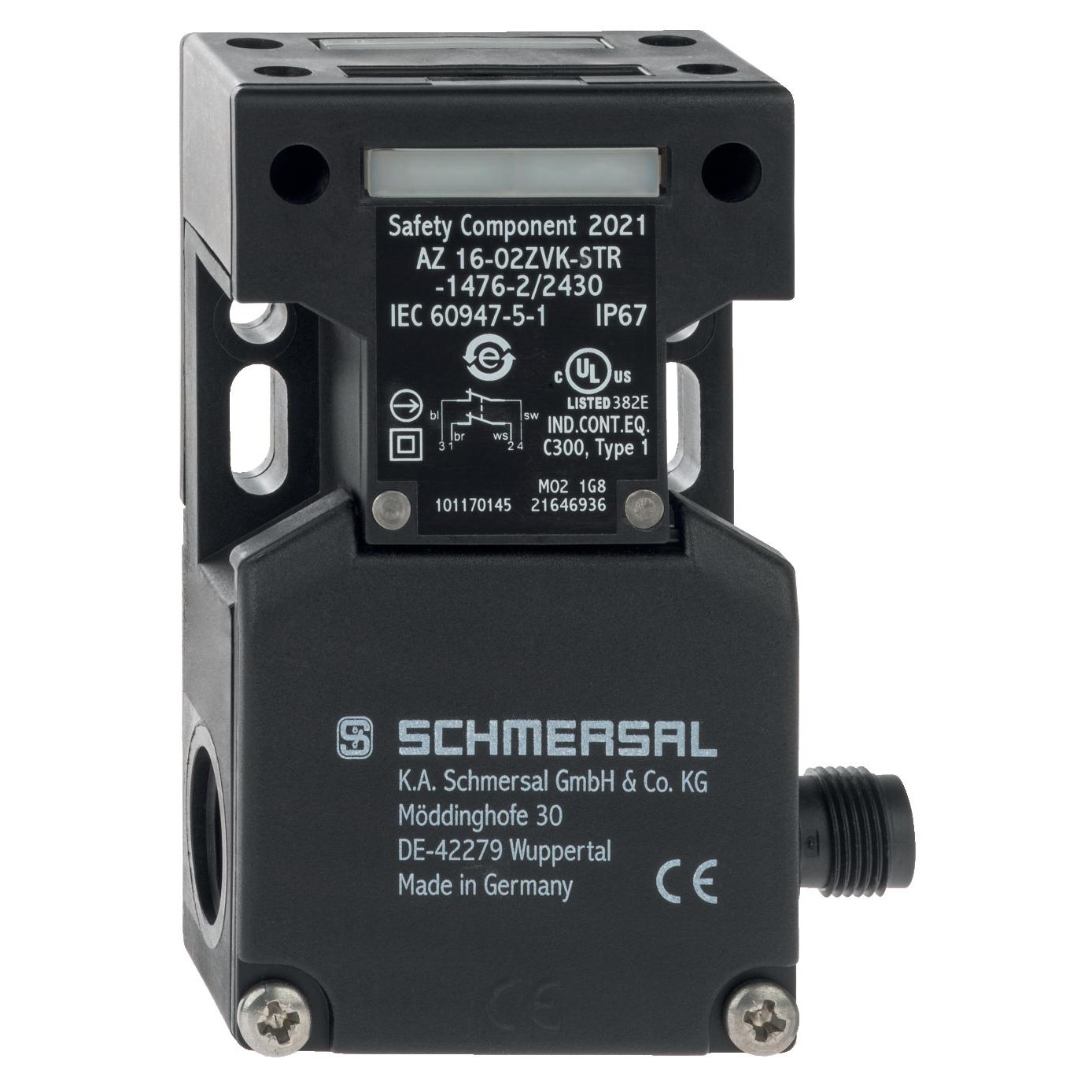

Product Type	Safety Switch with Separate Actuator
Brand	SCHMERSAL
Action	Slow Action, Positive Break NC Contact
Actuating Speed	2 m/s
Contact Configuration	NC
Contact Material	Silver
Degree of Protection	IP67
Housing Material	Plastic, Glass Fibre Reinforced Thermoplastic
Mechanical Life	1000000 Cycles
Operational Temperature	-30 to 80 deg C
Rated Current	1000 A
Rated Frequency	4000/h
Rated Insulation Voltage	500 V
Sensor Size	30 mm L x 52 mm W x 90 mm H
Standards and Approvals	EN IEC 60947-5-1, EN ISO 13849-1
