Latching Force (N)	30
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	6 A gG D-fuse
Maximum Storage Temperature (°C)	85
Minimum Ambient Temperature (°C)	-30
Minimum Storage Temperature (°C)	-40
No. of Auxiliary Contacts	1
No. of Cable Glands	3
No. of Safety Contacts	2
Positive Break Travel (mm)	8
Rated Operational Current AC-15 (A)	Auxiliary Contacts - 4A, Safety Contacts - 4A
Rated Operational Current DC-13 (A)	Auxiliary Contacts - 4A, Safety Contacts - 4A
Rated Operational Voltage AC-15 (V)	230V AC
Rated Operational Voltage DC-13 (V)	24 VDC
Rated Short-circuit Current (A)	1000
Sensor Height (mm)	90
Sensor Length (mm)	30
Sensor Width (mm)	52
Switching Element	NO Contact, NC Contact
Switching Frequency	4000/h
Switching Principle	Slow Action, Positive Break NC Contact
Termination	Screw Terminals
Thermal Test Current (A)	10
Brand	SCHMERSAL
Cable Entry	3 x M16 x 1.5
Contact Material	Silver
Degree of Protection	IP67
Housing Material	Plastic, Glass-fibre Reinforced Thermoplastic, Self-extinguishing
Maximum Ambient Temperature (°C)	80
Maximum Cable Cross Section (mm²)	2.5
Minimum Cable Cross Section (mm²)	0.25
Minimum Mechanical Life	1000000 Operations
Pollution Degree	3
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	500
Standards and Approvals	EN IEC 60947-5-1, EN ISO 13849-1

Safety Pushbuttons & Operator Devices

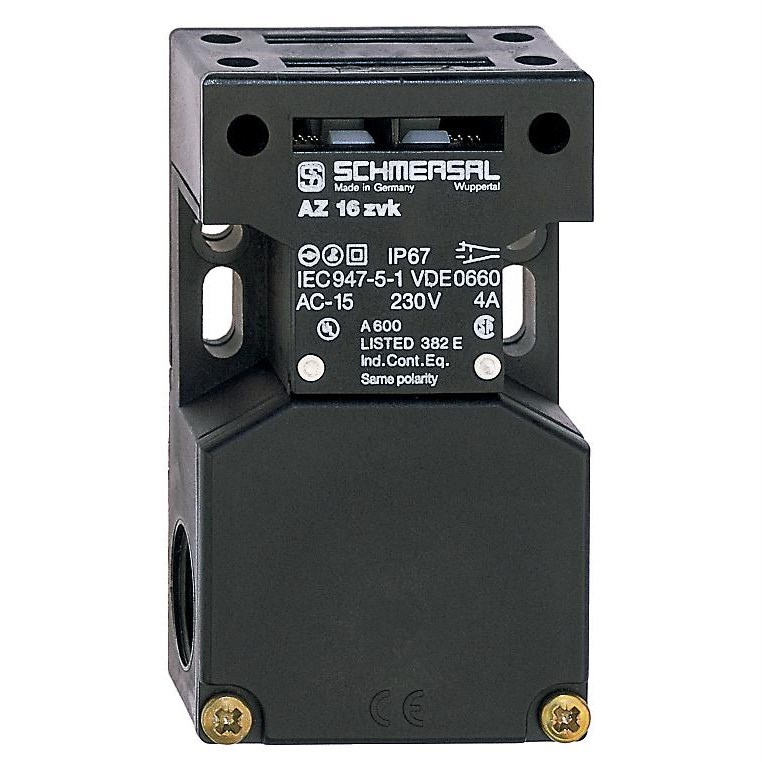

SCHMERSAL AZ 16-12ZVRK-1762SAFETY SWITCHWITH SEPARATE ACTUATOR 101134603
